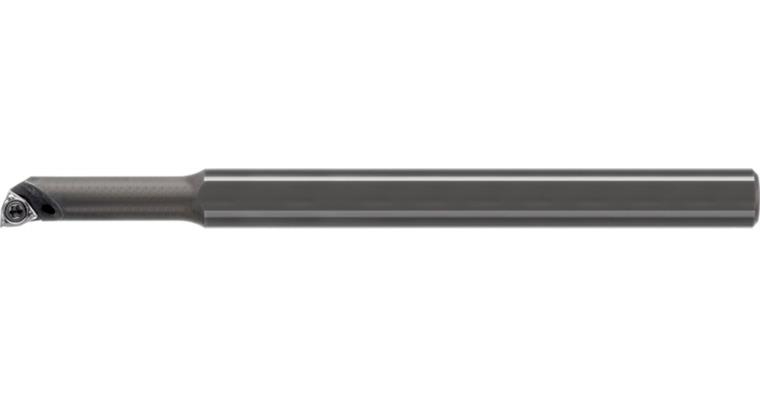

ATORN SWUC offset boring bar, solid carbide, positive, left, E 0508H SWUC R/L 02

ATORN SWUC offset boring bar, solid carbide, positive, left, E 0508H SWUC R/L 02

ATORN SWUC offset boring bar, solid carbide, positive, left, E 0508H SWUC R/L 02
Item no: 1018478 115

Online price:

Available in 4-6 working days.

Application
For face and longitudinal turning with WC indexable insert, 80°.

Execution
Precision-manufactured boring bar, steel, with internal cooling, offset, type C, attack angle 93°, tip angle 80°, clearance angle 7°

Advantage
  • Universal use for face and longitudinal turning
  • Positive geometry for the body ensures low cutting forces


Brand: ATORN
ISO name: E0508H-SWUC R/L 02
Min. bore diameter (D min.): 5,8 mm
Tapered diameter (d1): 5 mm
Shank diameter (d): 8 mm
Clearance length (l2): 18 mm
Length (l1): 100 mm
Clamping surface height (h): 7 mm
Programming size (f): 2,9 mm
Suitable for indexable inserts (ISO): WC.. 0201..
Tool design: Left
DIN: 8024

ATORN-No.: 12230045

EAN no.: 4050293390391

Product Datasheet
