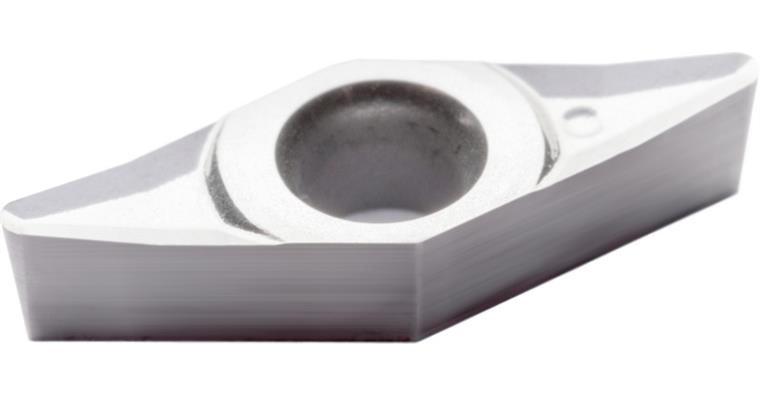

ATORN indexable inserts VCGT 050102-MN HW6315

ATORN indexable inserts VCGT 050102-MN HW6315

ATORN indexable inserts VCGT 050102-MN HW6315
Item no: 1018477 203

Online price:

Available in 5-7 working days.

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Execution
Ground cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 05
Thickness of indexable insert ISO: 01
Corner radius of indexable insert ISO: 02
Coating: 0 - not applicable
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P15
Carbide type: HW6315
ISO-Code Rotating: VCGT 050102
Material to be processed: Non-ferrous metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.04-0.12 mm/U
Materials group: N (primary application)
f min.: 0,04 mm/r
max. f: 0,12 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN
Min./max. Vc in non-ferrous metals: 160-280 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12230374

EAN no.: 4050293449907

Product Datasheet
