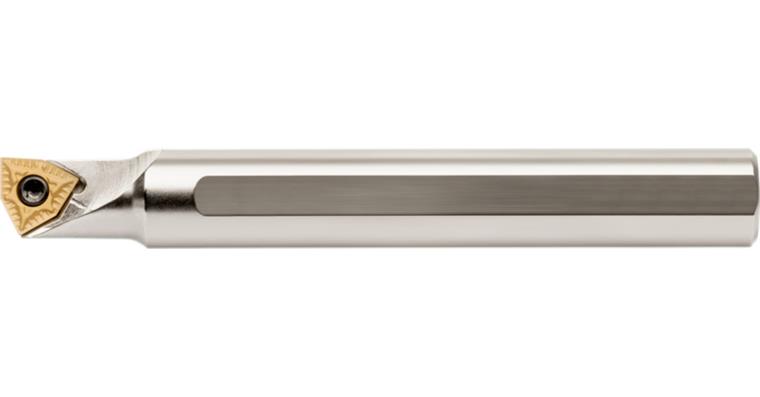

ATORN holder PTL26-1.5xD size 13

ATORN holder PTL26-1.5xD size 13

ATORN holder PTL26-1.5xD size 13
Item no: 1018476 327

Online price:

Available in 5-7 working days.

Application
For face and longitudinal turning, drilling, countersinking and chamfering.

Execution
Precision-manufactured steel tool holder with internal cooling, nickel-plated

Advantage
  • Tool cost minimisation: One tool for 5 types of machining
  • Process-time optimisation: up to 30% changeover time reduction

Notes
Use for internal cooling drilling work.

Brand: ATORN
Min. bore diameter (D): 26 mm
Max. drilling depth (D): 1.5xD
Tolerance of hole diameter: 0-0.33 mm
Immersion depth (l3): 39 mm
Length (l4): 180 mm
Shank diameter (d1): 32 mm
Suitable for indexable inserts: WCHX 1305..
Machining direction: Left

ATORN-No.: 12230257

EAN no.: 4050293427233

Product Datasheet
