ATORN insert holder SVVCN 1010 X11-A

ATORN insert holder SVVCN 1010 X11-A

ATORN insert holder SVVCN 1010 X11-A
Item no: 1018476 150

Online price:

Available in 5-7 working days.

Application

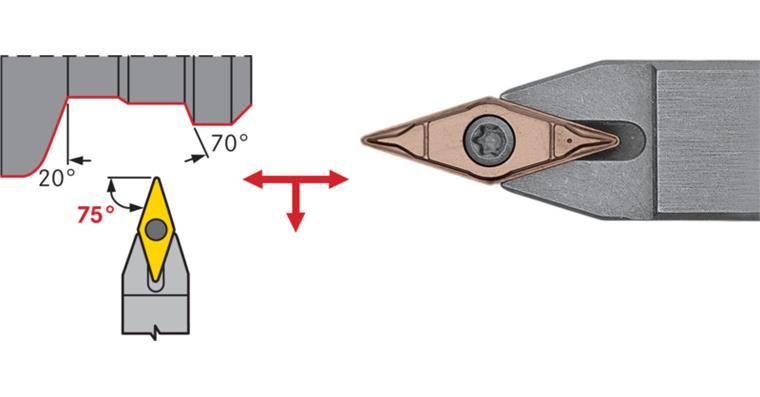

For longitudinal and copy turning using VC 35° indexable inserts

Execution
Precision-made steel support, bronzed, hardened, type V, pitch angle 72.5°, tip angle 35°, clearance angle 7°

Advantage
  • Positive body geometry ensures low cutting forces
  • Excellent surface quality for medium infeed and finishing


Brand: ATORN
ISO name: SVVC N 1010 X11-A
Shaft height (h=h1=b): 10 mm
Shank width (b): 10 mm
Length (l1): 115 mm
Programming size (f): 10 mm
Suitable for indexable inserts (ISO): VC.. 1103..
Tool design: Neutral
DIN: 4983

ATORN-No.: 12232868

EAN no.: 4050293693164

Product Datasheet
