ATORN insert holder SVJCL 1010 X11-A

ATORN insert holder SVJCL 1010 X11-A

ATORN insert holder SVJCL 1010 X11-A
Item no: 1018476 142

Online price:

Available in 5-7 working days.

Application

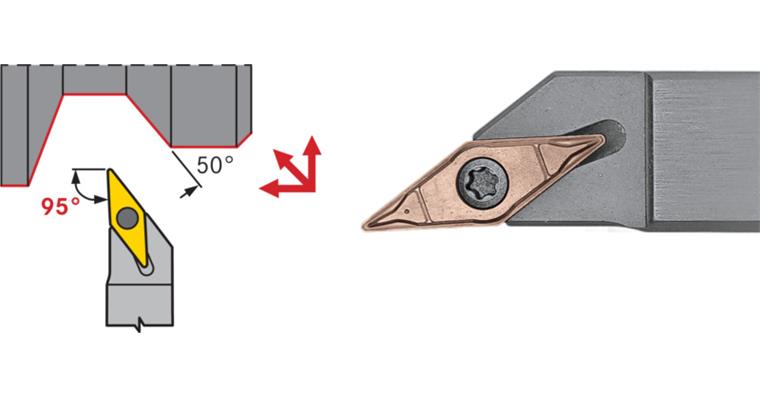

For longitudinal and copy turning with VC 35° indexable insert.

Execution
Precision-made steel support, bronzed, hardened, type V, pitch angle 93°, tip angle 35°, clearance angle 7°

Advantage
  • Positive body geometry ensures low cutting forces
  • Excellent surface quality for medium infeed and finishing


Brand: ATORN
ISO name: SVJC R/L 1010 X11-A
Shaft height (h=h1=b): 10 mm
Shank width (b): 10 mm
Length (l1): 115 mm
Programming size (f): 10 mm
Suitable for indexable inserts (ISO): VC.. 1103..
Tool design: Left
DIN: 4983

ATORN-No.: 12232859

EAN no.: 4050293693072
