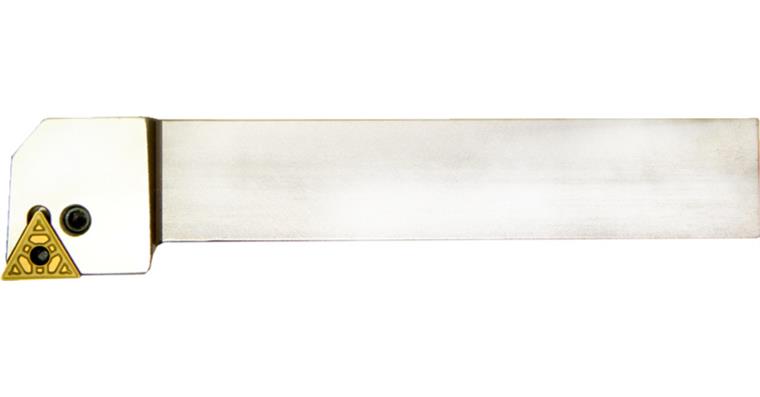

Ins. holder right neg. 0° tip ang. 60° set. ang. 90° PTGN/R 2525 M16 f. tri. II

Ins. holder right neg. 0° tip ang. 60° set. ang. 90° PTGN/R 2525 M16 f. tri. II

Ins. holder right neg. 0° tip ang. 60° set. ang. 90° PTGN/R 2525 M16 f. tri. II
Item no: 1018451 302

Online price:

Available in 8-10 working days.

Application
For longitudinal turning.

Execution
Approach angle 90°, for triangular indexable inserts negative 0°, 60° tip angle. For indexable inserts with centre bore. Mounting only with clamping lever (clamping system P)


Brand: HHW
Shaft height (h=h1): 25 mm
Shank width (b): 25 mm
Length (l1): 150 mm
Length of head (l2): 21 mm
Suitable for indexable inserts (ISO): TN.. 1604..
Tool design: Right
Clearance angle: 0 Degree
Cutting edge length: 16 mm
DIN: 4983
Direction of clearance angle: Negative
Grip system: P
Setting angle: 90 Degree
Shape of indexable insert ISO: T

EAN no.: 4024496047604
