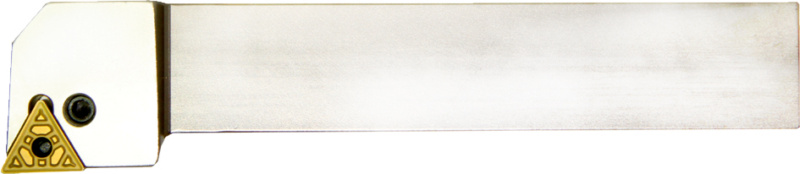

Ins. holder left neg. 0° tip angle 90° set. angle 45° PSSN/L 3225 P 12 f. sq.II

Ins. holder left neg. 0° tip angle 90° set. angle 45° PSSN/L 3225 P 12 f. sq.II

Ins. holder left neg. 0° tip angle 90° set. angle 45° PSSN/L 3225 P 12 f. sq.II
Item no: 1018449 303

Online price:

Available in 8-10 working days.

Application
For longitudinal turning, facing and chamfering. For indexable inserts SN..

Execution
Angle of attack 45°


Brand: HHW
Shaft height (h=h1): 25 mm
Shank width (b): 32 mm
Length (l1): 170 mm
Length of head (l2): 32 mm
Suitable for indexable inserts (ISO): SN.. 1204..
Tool design: Left
Clearance angle: 0 Degree
Cutting edge length: 12 mm
DIN: 4983
Direction of clearance angle: Negative
Grip system: P
Setting angle: 45 Degree
Shape of indexable insert ISO: S

EAN no.: 4024496047567

Product Datasheet
Versions
loading
