ATORN insert holder PDJN, negative, right, PDJN R/L 3225 P15

ATORN insert holder PDJN, negative, right, PDJN R/L 3225 P15

ATORN insert holder PDJN, negative, right, PDJN R/L 3225 P15
Item no: 1018445 505

Online price:

Available in 6-8 working days.

Application

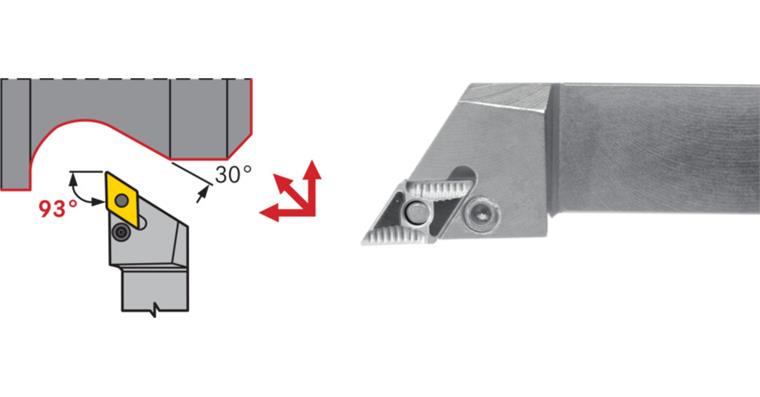

For copy turning and longitudinal turning using DN indexable insert 55°.

Execution
precision-engineered steel support, burnished, hardened, toggle clamp system, type D, 93° pitch angle, 55° tip angle, 0° clearance angle

Advantage
  • very slim geometry, optimised for contour turning with large feed depths and challenging conditions
  • negative body geometry ensures good stability and absorption of force for large cutting depths
  • wide range of delivery: suitable for both finishing and roughing


Brand: ATORN
ISO name: PDJN R/L 3225 P15
Shaft height (h=h1): 32 mm
Shank width (b): 25 mm
Length (l1): 170 mm
Length of head (l2): 24 mm
Programming size (f): 32 mm
Suitable for indexable inserts (ISO): DN.. 1506..
Tool design: Right
DIN: 4983

ATORN-No.: 11220162

EAN no.: 4050293347999

Product Datasheet
