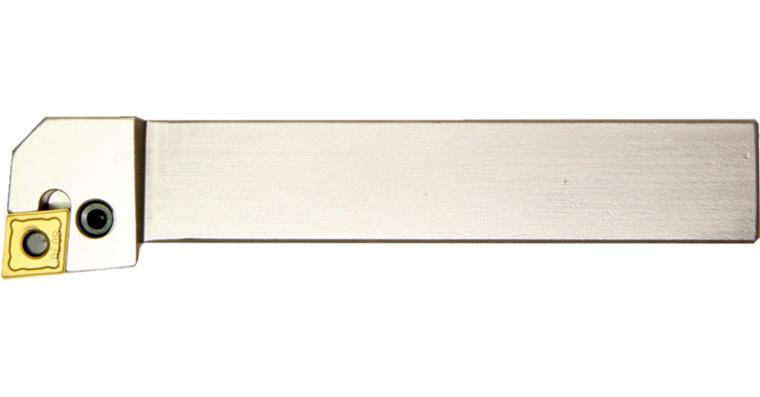

Ins. holder left neg. 0° tip ang. 80° set. ang. 95° PCLNL 3225 P16 for rh. II

Ins. holder left neg. 0° tip ang. 80° set. ang. 95° PCLNL 3225 P16 for rh. II

Ins. holder left neg. 0° tip ang. 80° set. ang. 95° PCLNL 3225 P16 for rh. II
Item no: 1018445 305

Online price:

Available in 8-10 working days.

Application
For longitudinal turning and facing. For indexable insert CN..

Execution
Approach angle 95°


Brand: HHW
Shaft height (h=h1): 25 mm
Shank width (b): 32 mm
Length (l1): 170 mm
Length of head (l2): 33 mm
Suitable for indexable inserts (ISO): CN.. 1606..
Tool design: Left
Clearance angle: 0 Degree
Cutting edge length: 16 mm
DIN: 4983
Direction of clearance angle: Negative
Grip system: P
Setting angle: 95 Degree
Shape of indexable insert ISO: C

EAN no.: 4024496047406

Product Datasheet
