ATORN insert holder PCLN, negative, left, PCLN R/L 2525 M12

ATORN insert holder PCLN, negative, left, PCLN R/L 2525 M12

ATORN insert holder PCLN, negative, left, PCLN R/L 2525 M12
Item no: 1018444 532

Online price:

Still in stock: 6

Application

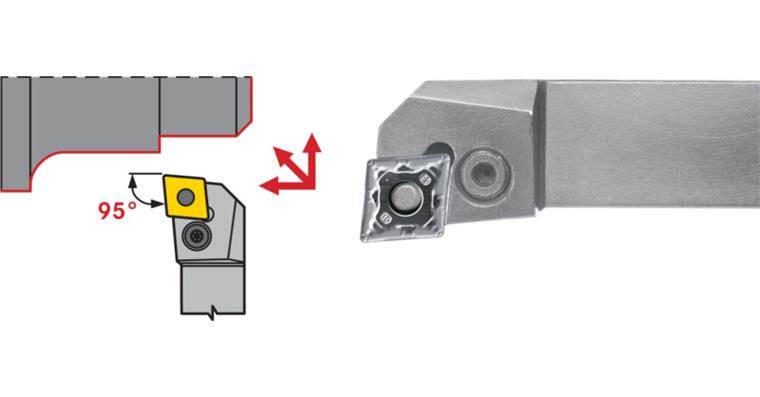

For longitudinal and face turning with CN indexable insert, 80°

Execution
Precision-manufactured steel support, burnished, hardened, toggle-joint clamping system, type C, working angle 95°, tip angle 80°, clearance angle 0°

Advantage
  • Universal use for face and longitudinal turning with large feed depths and unfavourable conditions
  • Negative geometry of the body ensures good stability and force absorption at large cutting depths
  • Broad range of use: suitable for both finishing and roughing operations


Brand: ATORN
ISO name: PCLN R/L 2525 M12
Shaft height (h=h1): 25 mm
Shank width (b): 25 mm
Length (l1): 150 mm
Length of head (l2): 28 mm
Programming size (f): 32 mm
Suitable for indexable inserts (ISO): CN.. 1204..
Tool design: Left
DIN: 4983

ATORN-No.: 11220006

EAN no.: 4050293126730

Product Datasheet
