ATORN insert holder CKJN, negative, left, CKJN R/L 3225 P16

ATORN insert holder CKJN, negative, left, CKJN R/L 3225 P16

ATORN insert holder CKJN, negative, left, CKJN R/L 3225 P16
Item no: 1018430 512

Online price:

Available in 6-8 working days.

Application

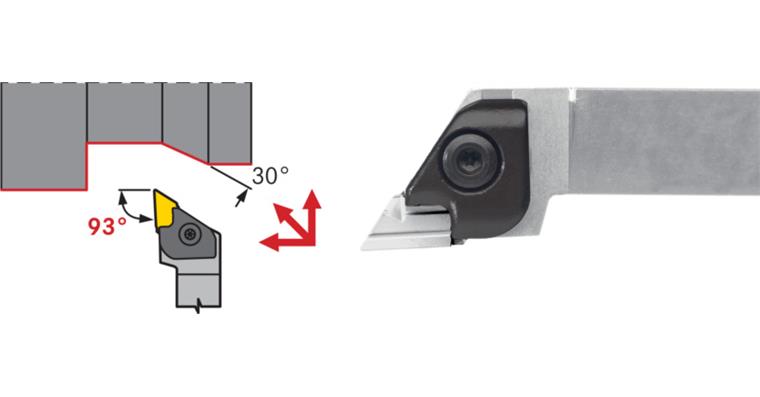

For copy, longitudinal turning and facing with KNUX 55° indexable insert.

Execution
Precision-manufactured steel support, burnished, hardened, adjustable clamp, type K, working angle 93°, tip angle 55°, clearance angle 0°

Advantage
  • For copy, longitudinal and face turning particularly on low-performance machines
  • Positive cutting geometry of the indexable insert ensures low cutting forces
  • Broad range of use: suitable for both finishing and roughing operations


Brand: ATORN
ISO name: CKJN R/L 3225 P16
Shaft height (h=h1): 32 mm
Shank width (b): 25 mm
Length (l1): 170 mm
Length of head (l2): 34 mm
Programming size (f): 32 mm
Suitable for indexable inserts (ISO): KNUX 1604..
Tool design: Left
DIN: 4983

ATORN-No.: 11220123

EAN no.: 4050293347685

Product Datasheet
