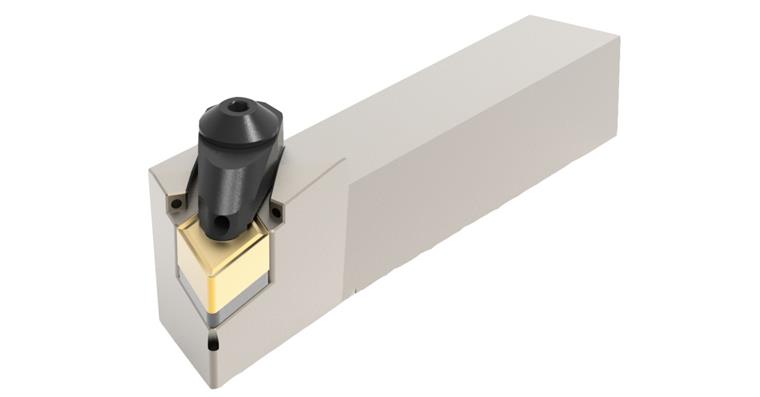

LIZZARD Halter DDJNL 1616 H11A IK lang für Wendeschneidplatte DN.. 1104

LIZZARD Halter DDJNL 1616 H11A IK lang für Wendeschneidplatte DN.. 1104

LIZZARD Halter DDJNL 1616 H11A IK lang für Wendeschneidplatte DN.. 1104
Item no: 1018395 253

Online price:

Available in 8-10 working days.

Application
For copy and longitudinal turning with 55° DN indexable insert.

Execution
  • Precision-manufactured steel support, hardened, adjustable clamping system, shape D, pitch angle 93°, tip angle 55°, clearance angle 0°
  • With internal cooling feed on the cutting edge

Advantage
  • Streamlined geometry, optimised for contour lathe work with high feed depths and unfavourable conditions
  • Negative body geometry ensures good stability and absorption of force for high cutting depths
  • Wide infeed range: Recommended for both finishing and roughing
  • Adjustable clamp minimises vibrations and ensures favourable power transmission


EAN no.: 4024496170722
