Carbide cutting insert MINI-CUT left LS11.1867.02 copy plate HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS11.1867.02 copy plate HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS11.1867.02 copy plate HC8620/TiAlN
Item no: 1018344 203

Online price:

Available in 6-8 working days.

Execution
Carbide/HC8620 TiAlN-coated

Notes
Ap max. = max. cutting depth

Brand: DUEMMEL
Cutting material: Carbide
Machining direction: Left
max. ap: 1,0 mm
Max. depth (t max.): 1,0 mm

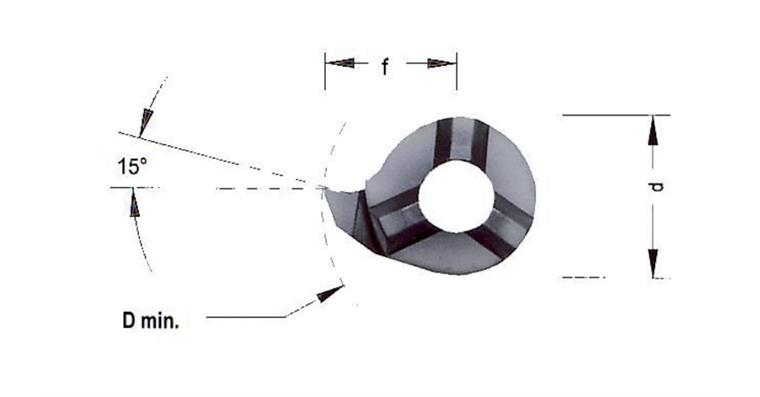

Min. drill hole diameter (D min.): 11,0 mm
Programming size 1 (s): 4,2 mm
Programming size 2 (d): 8,0 mm
Programming size 3 (f): 6,7 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 611
Width of cutting edge (b + 0,03): 3,9 mm

Manufacturer part no.: 11961177

EAN no.: 4050293284492

Product Datasheet
