Carbide cutting insert MINI-CUT right RS11.012R06 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT right RS11.012R06 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT right RS11.012R06 full radius HC8620/TiAlN
Item no: 1018343 105

Online price:

Still in stock: 1

Execution
  • Full radius
  • Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
Cutting material: Carbide
Machining direction: Right
Max. depth (t max.): 2,3 mm
Min. drill hole diameter: 11,0 mm
Programming size 1 (s): 4,2 mm
Programming size 2 (d): 8,0 mm
Programming size 3 (f): 6,7 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 611
Width of cutting edge (b + 0,05): 1,2 mm

Manufacturer part no.: RS11.012R06/AL41F

EAN no.: 4050293293296

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Wood drill bit set, M-drill tip, 5 pcs, dia. 4/5/6/8/10
  •
    Shelf box label holder PP red size 520 w/o divider 500x240x65
  •
    Carbide cutting insert MINI-CUT right RS16.040R20 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT right RS14.018R09 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT right RS11.030R15 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT right RS08.008R04 full radius HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT right RS16.030R15 full radius HC8620/TiAlN
  •

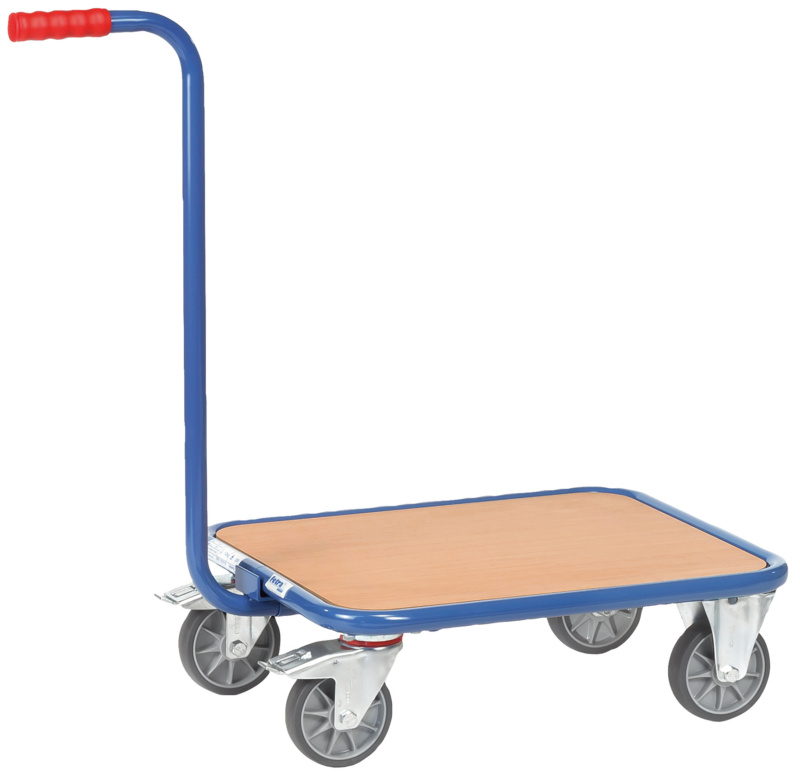

    Hand trolley 600x500 mm load capacity 250 kg 1 platform height 195 mm RAL 7016
  •
