Carbide cut. ins. MINI-CUT right RS014.0300 recess turning general HC8620/TiAlN

Carbide cut. ins. MINI-CUT right RS014.0300 recess turning general HC8620/TiAlN

Carbide cut. ins. MINI-CUT right RS014.0300 recess turning general HC8620/TiAlN
Item no: 1018341 112

Online price:

Still in stock: 2

Application
General recess turning.

Execution
Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
f min./max.: 0.01-0.1 mm/U
Cutting material: Carbide
Machining direction: Right
Max. depth (t max.): 4,0 mm

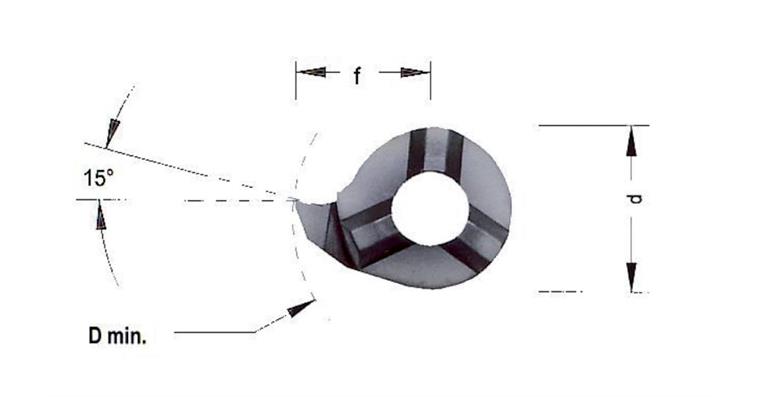

Min. drill hole diameter (D min.): 14,0 mm
Programming size 1 (s): 5,3 mm
Programming size 2 (d): 9,0 mm
Programming size 3 (f): 9,0 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 614
Width of cutting edge (b + 0,03): 3,0 mm

Manufacturer part no.: RS014.0300/AL41F

EAN no.: 4050293291773

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Shrink-fit chuck DIN 69871 shape AD SK40 extra-long diameter 12 x 160 mm
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 18 6H
  •
    Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 22 6H
  •

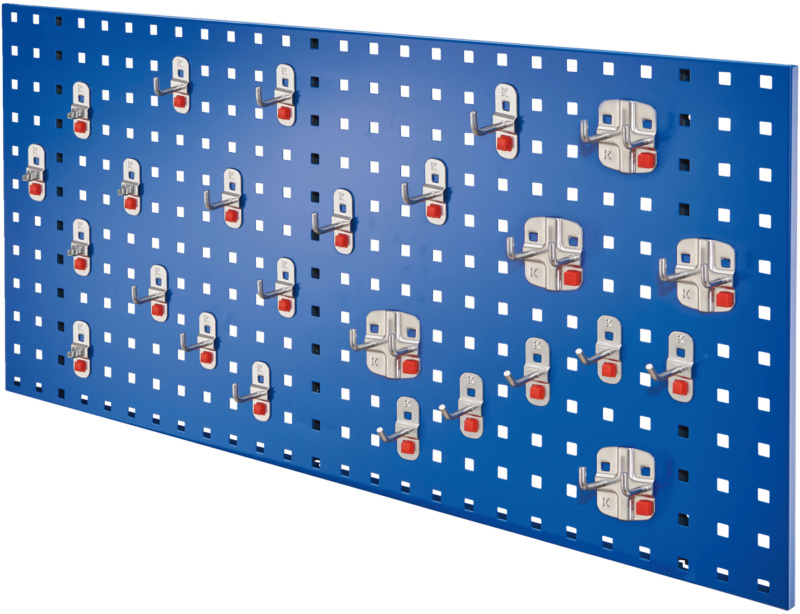

    Starter set 7 1x perf. plate gent. blue 450x1000mm 21x tool holder alu-coloured
  •

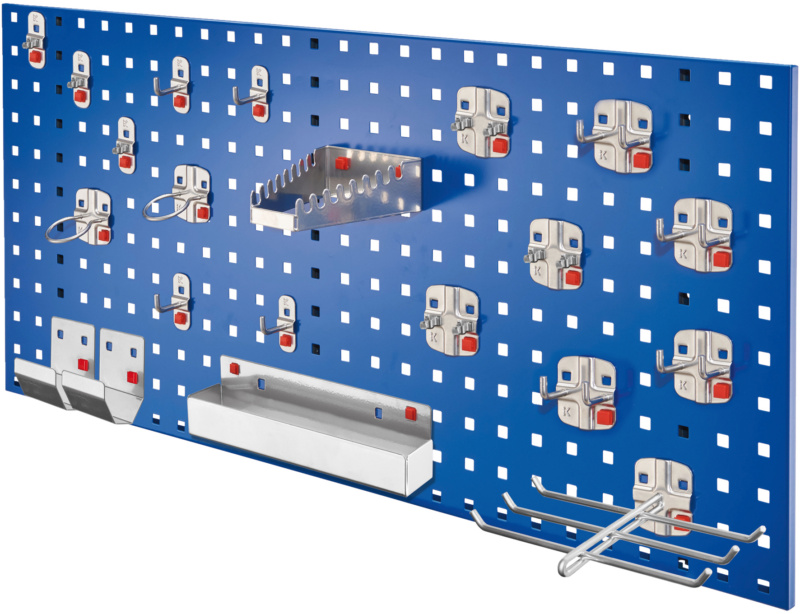

    Starter set 8 1x perf. plate gent. blue 450x1000mm 25x tool holder alu-coloured
  •
