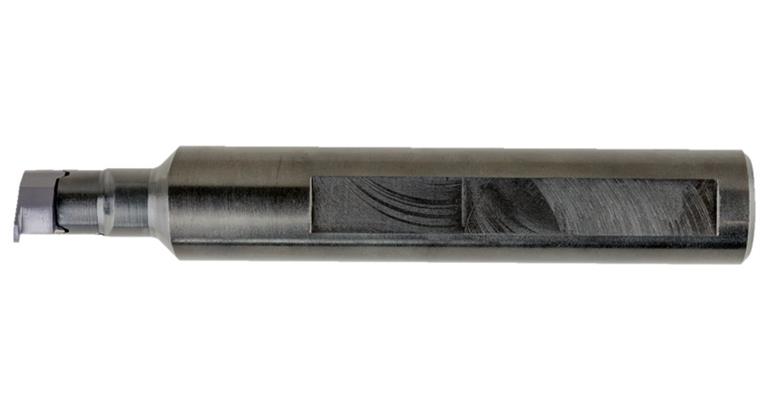

Steel insert holder short MINI-CUT608.0016.1 ST D16 mm f. cut. inserts R/LS08

Steel insert holder short MINI-CUT608.0016.1 ST D16 mm f. cut. inserts R/LS08

Steel insert holder short MINI-CUT608.0016.1 ST D16 mm f. cut. inserts R/LS08
Item no: 1018336 101

Online price:

Available in 6-8 working days.

Application
For recess turning, extracting and thread cutting (internal) from diameter 7.8 mm.

Execution
With internal cooling


Brand: DUEMMEL
Clearance diameter (d1): 6 mm
Clearance length (l2): 12 mm
Coolant supply: Internal
Cutting material: Steel
Length (l1): 80 mm
Machining direction: Neutral
Material: Steel
Materials group: H (secondary application) | K (primary application) | M (primary application) | N (secondary application) | P (primary application) | S (primary application)
Max. depth (t max.): 1 mm
Min. drill hole diameter (d min.): 8 mm
Programming size (a): 7,8 mm
Programming size 2 (h): 15 mm
Programming size 3 (f): 4,8 mm
Shank diameter (Ø dg6): 16 mm

Manufacturer part no.: 11960112
