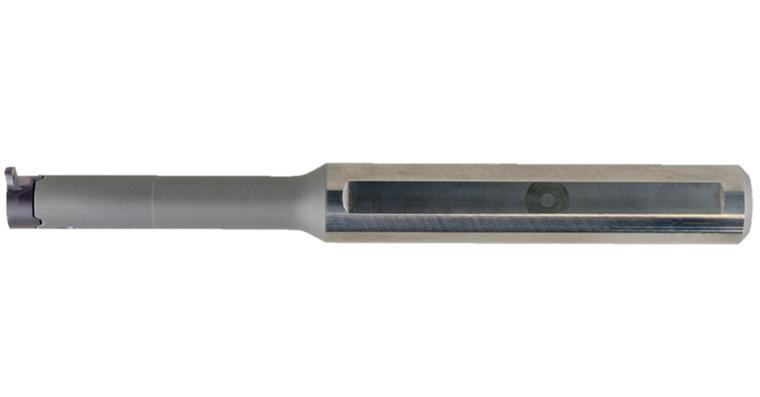

Carbide insert holder MINI-CUT 614.0012.3 cbd D12 mm f. cutting inserts R/LS14

Carbide insert holder MINI-CUT 614.0012.3 cbd D12 mm f. cutting inserts R/LS14

Carbide insert holder MINI-CUT 614.0012.3 cbd D12 mm f. cutting inserts R/LS14
Item no: 1018335 111

Online price:

Available in 6-8 working days.

Application
For recess turning, extracting and thread cutting (internal) from diameter 7.8 mm.

Execution
With internal cooling


Brand: DUEMMEL
Clearance diameter (d1): 9,5 mm
Clearance length (l2): 64 mm
Coolant supply: Internal
Cutting material: Carbide
Length (l1): 130 mm
Machining direction: Neutral
Material: Carbide
Materials group: H (secondary application) | K (primary application) | M (primary application) | N (secondary application) | P (primary application) | S (primary application)
Max. depth (t max.): 4,0 mm
Min. drill hole diameter (d min.): 14/17 mm
Programming size (a): 13,8 mm
Programming size 1 (l7): 60 mm
Programming size 2 (h): 10,5 mm
Programming size 3 (f): 9,0 mm
Shank diameter (Ø dg6): 12 mm

Manufacturer part no.: 614.0012.3HM

EAN no.: 4050293273939

Product Datasheet
