Cutting insert mini-bore right R050.5-20 from bore dia. 0.6 mm cbd HC8615/TiN

Cutting insert mini-bore right R050.5-20 from bore dia. 0.6 mm cbd HC8615/TiN

Cutting insert mini-bore right R050.5-20 from bore dia. 0.6 mm cbd HC8615/TiN
Item no: 1018322 118

Online price:

Still in stock: 3

Application
For internal extraction from bore diameter 0.6 mm.
For clamp holders 645.0012-D, 645.0016-D and 645.0020-D (art. no. 1018321 101-103).

Execution
  • Internal coolant feed
  • Straight shank and side clamping surface for mounting in the insert holder
  • Carbide ultra-fine grain HC8615/TiN-coated


Brand: DUEMMEL
Shank diameter (Ø h6): 5 mm
Length (L): 35 mm
Clearance length (L1): 20 mm
Radius (R): 0,15 mm
Programming size 2 (a): 4,4 mm
Min. bore diameter (D min.): 5,0 mm
Machining direction: Right
Carbide type: AL41F
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in cast iron: 20-180 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in special alloys: 18-80 m/min
Coolant supply: Internal
Cutting material: Carbide
Holder size: 4/5 mm
Materials group: S (primary application) | H (secondary application) | K (primary application) | M (primary application) | N (secondary application) | P (primary application)
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1

Manufacturer part no.: 11962094

EAN no.: 4050293293661

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Cutting insert mini-bore left L050.2-10 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.4-16 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.2-15 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.4-24 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.6-3 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore left L050.5-3 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.3-16 from bore dia. 0.6 mm cbd HC8615/TiN
  •
    Cutting insert mini-bore right R050.3-10 from bore dia. 0.6 mm cbd HC8615/TiN
  •

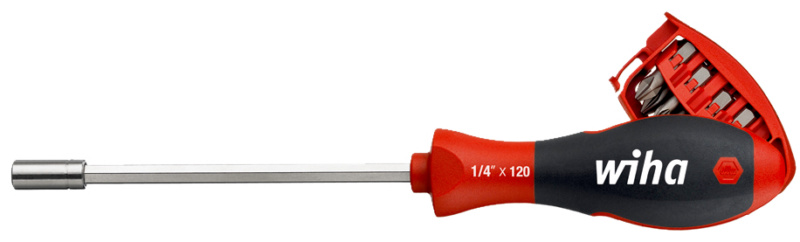

    1/4 inch hand-held magazine bit holder 8 bits slot PH PZ TX mag. holder hex bl.
  •
