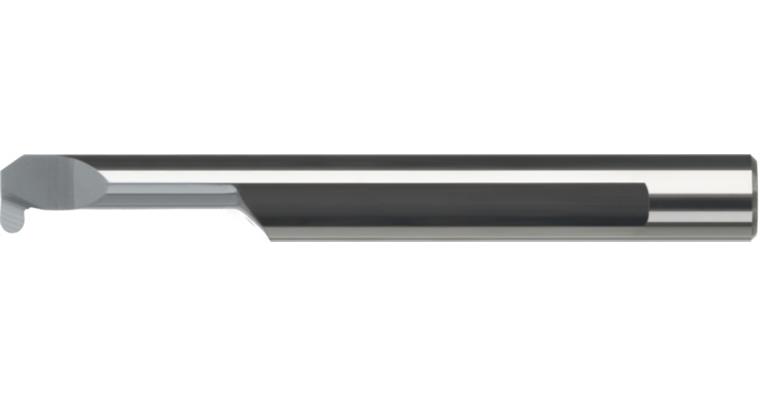

ATORN mini cutting insert AKL 5.0mm R0.5 L15 HW5615

ATORN mini cutting insert AKL 5.0mm R0.5 L15 HW5615

ATORN mini cutting insert AKL 5.0mm R0.5 L15 HW5615
Item no: 1018317 271

Online price:

Available in 4-6 working days.

Application
For internal recessing with radius in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide cutting insert with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • stable geometry for cutting insert
  • extremely sharp cutting edges ensure cutting with process reliability


Brand: ATORN
ISO name: AK
Shank diameter (D): 5 mm
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,5 mm
Recessing width (W): 1,0 mm
Programming size 2 (H): 1,2 mm
Programming size (F): 2,3 mm
Min. bore diameter (D min.): 5,1 mm
Machining direction: Left
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11948224

EAN no.: 4050293667356

Product Datasheet
