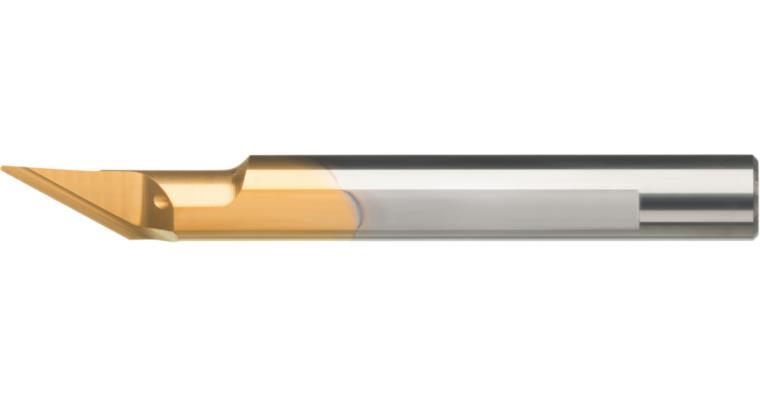

ATORN mini cutting insert AW L 6.0mm R0.2 A60 HC5640

ATORN mini cutting insert AW L 6.0mm R0.2 A60 HC5640

ATORN mini cutting insert AW L 6.0mm R0.2 A60 HC5640
Item no: 1018317 052

Online price:

Available in 4-6 working days.

Application
For chamfering and profile turning in the material groups of steel and (stainless steel) with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide cutting insert, 45° chamfer angle with inner cooling

Advantage
  • tough cemented carbide type for broad application field
  • user-friendly chamfering and profile turning and precise chamfers with excellent finish quality
  • ideal for use with inefficient machines and unstable cutting conditions


Brand: ATORN
Shank diameter (D): 6 mm
ISO name: AW
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,2 mm
Chamfer angle (β): 30 Degree
Bevel angle (α): 60 Degree
Programming size (F): 2,3 mm
Min. bore diameter (D min.): 1 mm
Holder size: 6
Machining direction: Left
Carbide type: HC5640
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal

ATORN-No.: 11946244

EAN no.: 4050293266733

Product Datasheet
