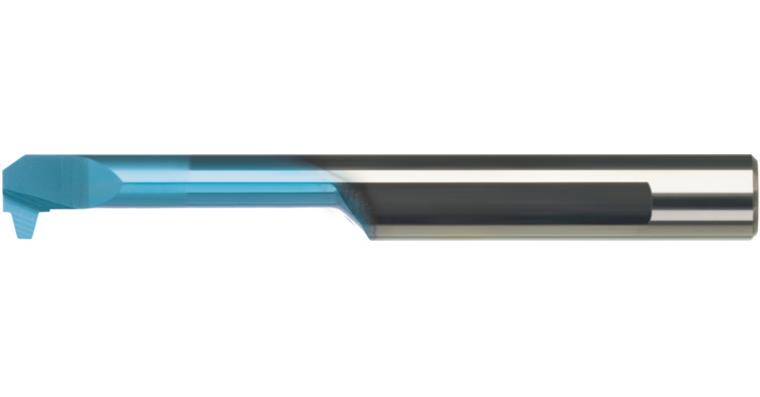

ATORN mini cutting insert AIL 10.0mm L35 2 TR HC5615

ATORN mini cutting insert AIL 10.0mm L35 2 TR HC5615

ATORN mini cutting insert AIL 10.0mm L35 2 TR HC5615
Item no: 1018316 860

Online price:

Available in 4-6 working days.

Application
For 30° trapezoidal thread cutting in the material groups of steel, stainless steel, special alloys, hard machining up to 65 HRC with high cutting speeds and medium cutting conditions.

Execution
solid carbide 30° cutting insert with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • precise mapping of the thread flanges with exact profile illustration
  • innovative coating technology for universal use with extremely demanding service life requirements
  • no need to deburr the thread thanks to full profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 10 mm
Edge angle (α): 30 Degree
Suitable for screw thread: Tr14 x 2 | Tr16 x 2 | Tr18 x 2 | Tr20 x 2
Suitable for trapezoid thread pitch: 2 mm
Length (L): 73 mm
Programming size (F): 4,8 mm
Clearance length (L1): 35 mm
Min. bore diameter (D min.): 11 mm
Machining direction: Left
Carbide type: HC5615
Material to be processed: Steel | Stainless steel | Special alloy | Hardened material

ATORN-No.: 11948198

EAN no.: 4050293667097

Product Datasheet
