ATORN mini cutting insert AIR 3.0mm L15 0.7ISO HC5615

ATORN mini cutting insert AIR 3.0mm L15 0.7ISO HC5615

ATORN mini cutting insert AIR 3.0mm L15 0.7ISO HC5615
Item no: 1018316 762

Online price:

Available in 4-6 working days.

Application
For thread cutting 60° in steel, stainless steel, special alloys material groups, hard machining to 65HRC at high cutting speeds and mid-range cutting conditions.

Execution
Solid carbide cutting insert 60° with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Exact replication of the thread flanks with exact profile presentation
  • Innovative coating technology for universal use with very high service life requirements
  • No de-burring of thread required due to full-profile geometry


Brand: ATORN
ISO name: AI
Shank diameter (D): 3 mm
Edge angle (α): 60 Degree
Suitable for screw thread: M4 x 0.7
Length (L): 39 mm
Clearance length (L1): 15 mm
Programming size (F): 1,4 mm
Min. bore diameter (D min.): 3,2 mm
Machining direction: Right
Carbide type: HC5615
Material to be processed: Steel | Stainless steel | Special alloy | Hardened material

ATORN-No.: 11947035

EAN no.: 4050293375909

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

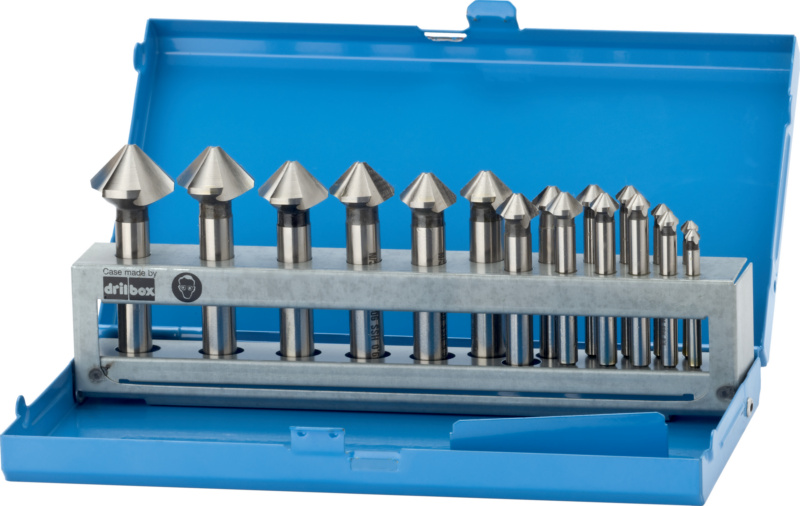

  • ATORN countersink set, 90°, HSS, T=3, 4.3-25.0 mm
