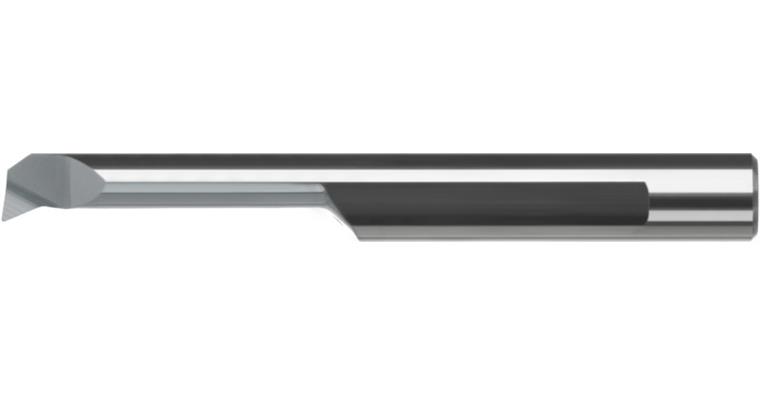

ATORN mini cutting insert APR 7.0mm R0.2 L30 HW5615 16.45

ATORN mini cutting insert APR 7.0mm R0.2 L30 HW5615 16.45

ATORN mini cutting insert APR 7.0mm R0.2 L30 HW5615 16.45
Item no: 1018316 485

Online price:

Available in 4-6 working days.

Application
For copy and longitudinal turning in the material groups steel and (stainless steel) at low to high cutting speeds and under average cutting conditions.

Execution
Solid carbide cutting insert with 98° working angle with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Stable geometry, ideal for inside turning
  • Extremely sharp blades ensure process reliability for cutting


Brand: ATORN

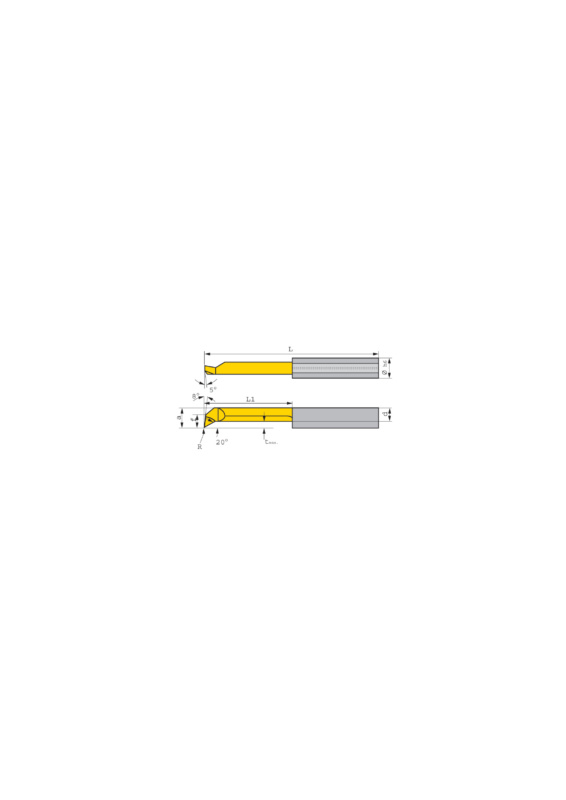

Shank diameter (D): 7 mm
ISO name: AP
Length (L): 62 mm
Clearance length (L1): 30 mm
Radius (R): 0,2 mm
Programming size 2 (H): 1,5 mm
Programming size (F): 3,3 mm
Min. bore diameter (D min.): 7,1 mm
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11946815

EAN no.: 4050293373707

Product Datasheet
