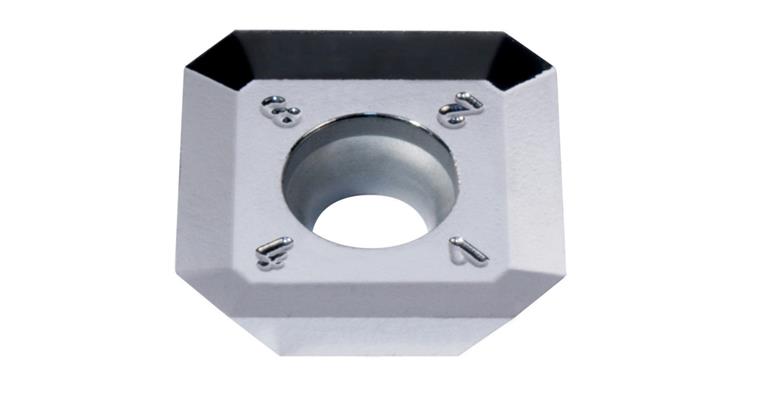

LIZZARD Fräswendeplatte SEHX 13T3 F HWN 15-M

LIZZARD Fräswendeplatte SEHX 13T3 F HWN 15-M

LIZZARD Fräswendeplatte SEHX 13T3 F HWN 15-M
Item no: 1017838 503

Online price:

Available in 5-7 working days.

Application
For milling


Brand: LIZZARD
Cutting material: Carbide
Inner circle diameter (d): 13,4 mm
Knife edge length (l): 13,4 mm
Mounting bore diameter (d1): 4,1 mm
Thickness of indexable insert (s): 3,97 mm
Carbide type: HWN15M
Materials group: N (primary application)
Carbide type ISO: N10 | N20
Min./max. Vc in non-ferrous metals: 200-300 m/min
min./max. ap non-ferrous metals: 0.1-3.0 mm
Number of pieces per packet: 10 PCS

EAN no.: 4024496177851

Product Datasheet
