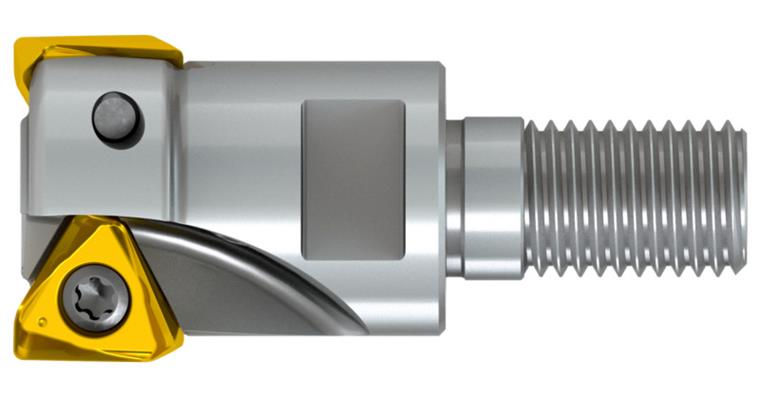

Fc. shl. mill. cut. 40A4R043M16-STN16-C TNGX 1606.. dia.40 mm w/ M16 thr. sh. T4

Fc. shl. mill. cut. 40A4R043M16-STN16-C TNGX 1606.. dia.40 mm w/ M16 thr. sh. T4

Fc. shl. mill. cut. 40A4R043M16-STN16-C TNGX 1606.. dia.40 mm w/ M16 thr. sh. T4
Item no: 1017747 313

Online price:

Available for immediate delivery

Execution
  • 90° shoulder milling cutter with internal cooling
  • With thread

Advantage
  • Body surface-treated for a longer service life
  • Suitable for face milling, flat shoulder milling, plunge milling, ramping, progressive plunge milling, interpolation and flat groove milling


Brand: DORMER PRAMET
Cutting edge diameter (DC): 40 mm
Cantilever length (LF): 43 mm
Number of cutting edges: 4 PCS
Length (OAL): 66 mm
Thread dimension (TDZ): M16
Shank diameter (DCON MS): 17,0 mm
Suitable for indexable inserts: TN.. 1606..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Screw-in thread
Coupon code: DORMER1017747313

Manufacturer part no.: 8021161

EAN no.: 3603603844704

Product Datasheet
