ATORN 45 degree face milling cutters with inner cooling, diameter 125.0 mm T=16

ATORN 45 degree face milling cutters with inner cooling, diameter 125.0 mm T=16

ATORN 45 degree face milling cutters with inner cooling, diameter 125.0 mm T=16
Item no: 1017722 114

Online price:

Available in 4-6 working days.

Application
The indexable milling cutter allows economical face milling at medium cutting depths and rough machining of many materials including steel, VA, cast materials and aluminium. The robust reversible tip with eight cutting edges is particularly economical and has impressive universal possible applications. 6.35 mm insert thickness improves process reliability enormously and protects the support body.

Execution
  • For milling plates SN.X 1206, SNMU 1206 and ONMU 1205
  • Wear-resistant, nickel-plated version
  • Normal and fine pitch

Advantage
  • Double-sided indexable insert with large chip angle and eight cutting edges
  • Outstanding surface finish
  • Very wide range of applications
  • Approx. max. 5.5 mm
  • Easy cutting with low cutting force


Brand: ATORN
Min. cutting edge diameter (D): 125 mm
Max. cutting edge diameter (D1 max): 138 mm
Length (L1): 63 mm
Bore diameter (d): 40 mm
max. ap: 5,5 mm
Number of cutting edges: 16 PCS

ATORN-No.: 11118155

EAN no.: 4050293539943

Product Datasheet
Additional articles

Please select a button.

Spare Parts
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN face milling cutters, 45 degrees 100.0 mm T=8
  •
    ATORN 45 degree face milling cutters with inner cooling, diameter 100.0 mm T=8
  •
    ATORN 45 degree face milling cutters with inner cooling, diameter 125.0 mm T=10
  •
    ATORN 45 degree face mill. cutters with no inner cooling, diameter 200.0 mm T=14
  •
    ATORN 45 degree face milling cutters with inner cooling, diameter 100.0 mm T=12
  •
    SET PLANR.Ø50X22 Z4+20 SNMX1206/ONMU1205
  •
    SET PLANR.Ø63X22 Z6+20 SNMX1206/ONMU1205
  •
    Index. ins face milling cutter 45° HNGJ diameter 100 mm 8 teeth
  •
    Centring angle aluminium hardened scratch-resistant surface 250 x 160 mm
  •
    Centring angle aluminium hardened scratch-resistant surface 500 x 300 mm
    263,25 €
  • Nozzle pipe bent with hydraulic gripper coupling for grease guns cat. no. 77540
  •

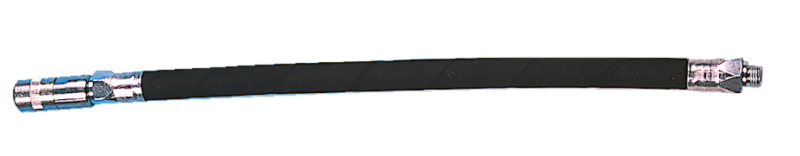

    Safety armoured rubber hose 300 mm for lubricating compressor cat. no. 77610
