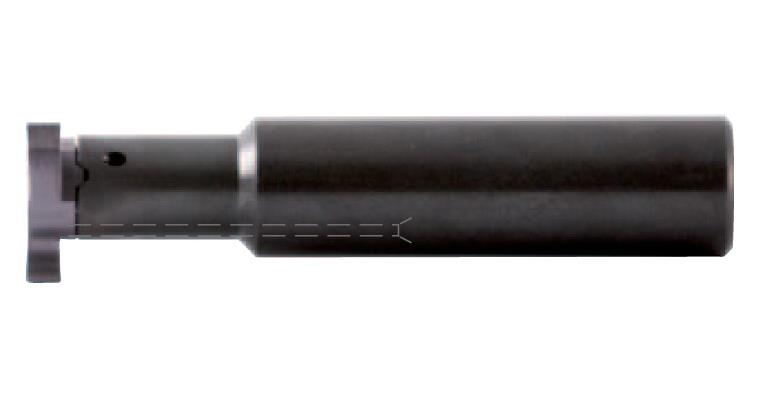

MINI-MILL insert holder steel shank DIN 1835A ZH22.1612.24.A.ST

MINI-MILL insert holder steel shank DIN 1835A ZH22.1612.24.A.ST

MINI-MILL insert holder steel shank DIN 1835A ZH22.1612.24.A.ST
Item no: 1017580 203

Online price:

Available in 6-8 working days.

Application
For producing grooves, Seeger ring grooves, metric ISO threads, Whitworth pipe threads and full radius grooves and for chamfering and deburring.

Execution
  • Steel shank according to DIN 1835 A
  • With internal coolant supply
  • 3-rib toothing

Notes
For cutting plates, see art. no. 1017582-1017593.

Manufacturer part no.: 11963063
