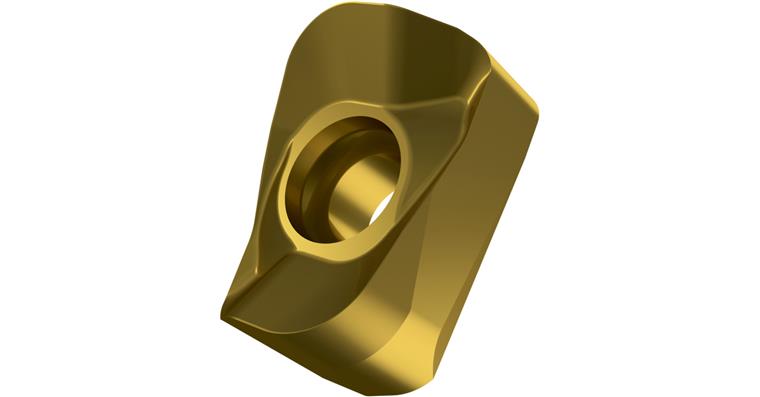

High-feed indexable milling insert ANHX 10T320SR-F M8330

High-feed indexable milling insert ANHX 10T320SR-F M8330

High-feed indexable milling insert ANHX 10T320SR-F M8330
Item no: 1017567 218

Online price:

Available for immediate delivery

Application
High-performance indexable insert

Execution
F geometry with positive design for finishing to semi-finishing

Advantage
Machining with high feed rates


Brand: DORMER PRAMET
Material to be processed: Steel | Stainless steel
ISO name: ANHX 10T320SR-F
Supply type: Smoothing - Positive chip breaker for low cutting depths
Surface: Coated
Cutting material: SC
Inner circle diameter (W1): 5,8 mm
Knife edge length (L): 9,72 mm
Mounting bore diameter (D1): 2,76 mm
Corner radius (RE): 2,0 mm
Thickness of indexable insert (S): 20
Carbide type: M8330
Coating: PVD
Materials group: P (primary application) | M (secondary application)
Carbide type ISO: M35 | M20 | P40 | P20
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 255-455 m/min
min./max. ap steel: 0.1-3.0 mm
min./max. fz steel: 0.05-0.15 mm/U
Min./max. Vc in stainless steel: 150-275 m/min
min./max. ap stainless steel: 0.1-3.0 mm
min./max. fz stainless steel.: 0.06-0.14 mm/U
Number of pieces per packet: 10

Manufacturer part no.: 7452020

EAN no.: 3603603386501

Product Datasheet Technical Datasheet
