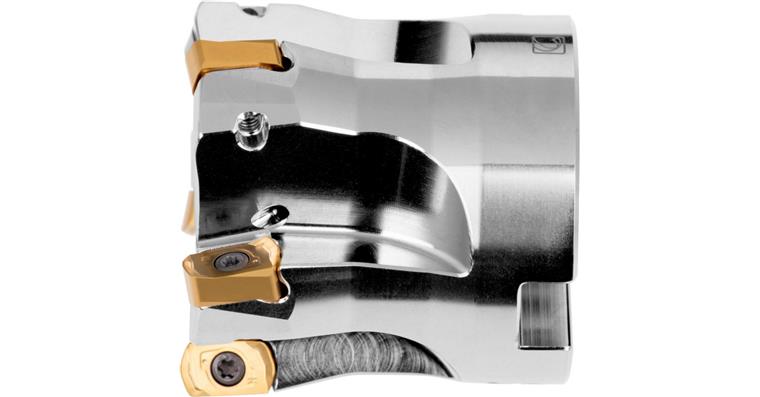

High-feed milling cutter shell end 42A05R-SMOBN10-C

High-feed milling cutter shell end 42A05R-SMOBN10-C

High-feed milling cutter shell end 42A05R-SMOBN10-C
Item no: 1017567 131

Online price:

Available for immediate delivery

Application
High-feed milling cutter for small diameters.
Suitable for face milling, flat shoulder milling, plunge milling, contour milling, ramping, progressive plunge milling, interpolation and flat groove milling.

Execution
With location hole

Advantage
Body surface-treated for a longer service life


Brand: DORMER PRAMET
Cutting edge diameter (DCX): 42 mm
Min. cutting edge diameter (DC): 35,4 mm
Number of cutting edges: 5 PCS
Length (LF): 40 mm
Bore diameter (DCON MS): 16 mm
Clearance 2 (KWW): 5,6 mm
Clearance (KWD): 8,4 mm
Bore hole (DCCB): 14,1 mm
Suitable for indexable inserts: BNGX 10T3..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Location bore
Coupon code: DORMER1017567131

Manufacturer part no.: 7464826

EAN no.: 3603603406032

Product Datasheet
