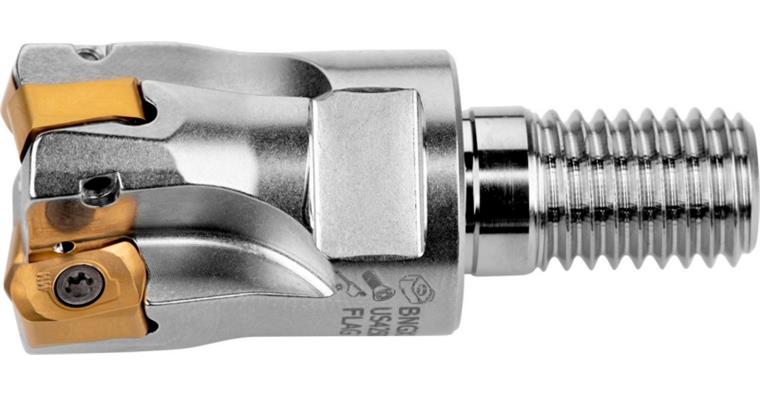

High-feed milling cutter thread 35E6R043M16-SBN10-C

High-feed milling cutter thread 35E6R043M16-SBN10-C

High-feed milling cutter thread 35E6R043M16-SBN10-C
Item no: 1017567 126

Online price:

Available for immediate delivery

Application
High-feed milling cutter for small diameters.

Execution
With thread

Advantage
  • Body surface-treated for a longer service life
  • Suitable for face milling, flat shoulder milling, plunge milling, contour milling, ramping, progressive plunge milling, interpolation and flat groove milling


Brand: DORMER PRAMET
Cutting edge diameter (DCX): 35 mm
Min. cutting edge diameter (DC): 28,4 mm
Projecting length (LF): 43 mm
Number of cutting edges: 6 PCS
Length (OAL): 66 mm
Thread dimension (TDZ): M16
Shank diameter (DCON MS): 17,0 mm
Suitable for indexable inserts: BNGX 10T3..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Screw-in thread
Coupon code: DORMER1017567126

Manufacturer part no.: 7452557

EAN no.: 3603603388208

Product Datasheet
