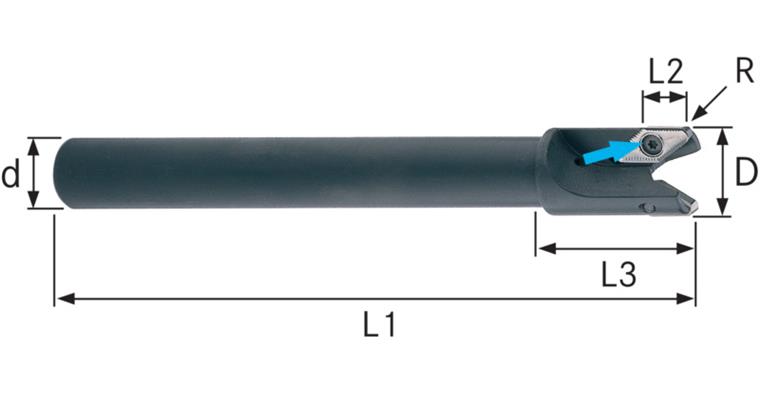

ATORN end mill for VCGT220530 32.0 mm, shank D=25.0 mm, T=2

Versions

Item no: 1017560 103

Online price:

Catalogue price: You save:

Available in 5-7 working days.

Min. order quantity: 1

Application
Ideal for processes such as excavation and plunge milling in aluminium and plastics with the highest usage values. The robust and precision-ground VPGT/VCGT reversible tip is ideal for plunge milling without a pilot bore thanks to its optimised shape and cutting geometry. Excellent chip removal thanks to polished cutting faces and large chip spaces; enables high cutting rates with minimal built-up edge formation.

Execution

With straight shank
Robust support design for high-performance milling
With internal cooling
Clamping screw tightening torque (indexable insert) M4 = 5.2 Nm, M5 = 8 Nm

Advantage

Low cutting forces
Large corner radii for reduced wear
Very high material removal rate
Highest feed rates possible
Also ideal for cutting plastics

ATORN-No.: 10612064

EAN no.: 4050293061864

Product Datasheet
