LIZZARD WENDEPLATTEN APMT 1003 PDR-M HPU35-M

LIZZARD WENDEPLATTEN APMT 1003 PDR-M HPU35-M

LIZZARD WENDEPLATTEN APMT 1003 PDR-M HPU35-M
Item no: 1017509 500

Online price:

Available for immediate delivery

Application
For milling


Material to be processed: Steel | Stainless steel | Cast metal
Brand: LIZZARD
ISO name: APKT 1003 PDR-M
Surface: TiAlN multilayer coating
Cutting material: Carbide
Shape of indexable insert ISO: A
Clearance angle of indexable insert ISO: P
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 10
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 05
Inner circle diameter (IC): 6,7 mm
Knife edge length (L): 10 mm
Mounting bore diameter (D1): 3,2 mm
Corner radius (RE): 0,5 mm
Thickness of indexable insert (S): 3,5 mm
Carbide type: HPU35M
Coating: PVD
Materials group: P (primary application) | M (primary application) | K (primary application)
Carbide type ISO: P25 | P40 | M20 | M40 | K20 | K40
Min./max. Vc in steel: 100-170 m/min
Min./max. Vc in stainless steel: 70-130 m/min
Min./max. Vc in cast iron: 120-230 m/min
Number of pieces per packet: 10 PCS

EAN no.: 4024496173297

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Desktop calculator Business Pro MTL 600
  • Carbide hole saw flat cut dia. 59 mm
  • Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 10.9 mm
  • ATORN screwdriver blade TX 7 x 170 mm, 1/4 inch

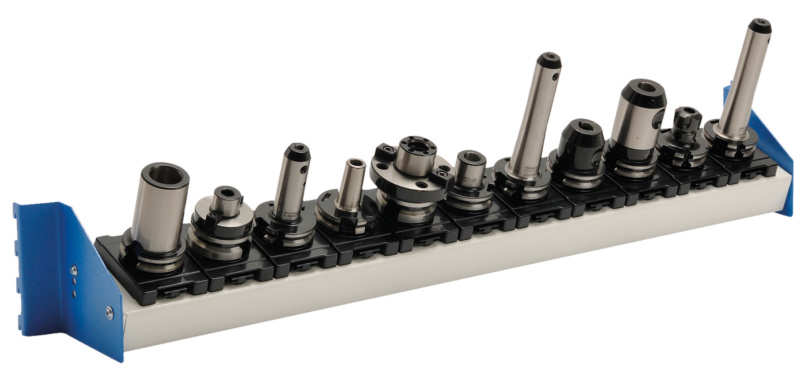

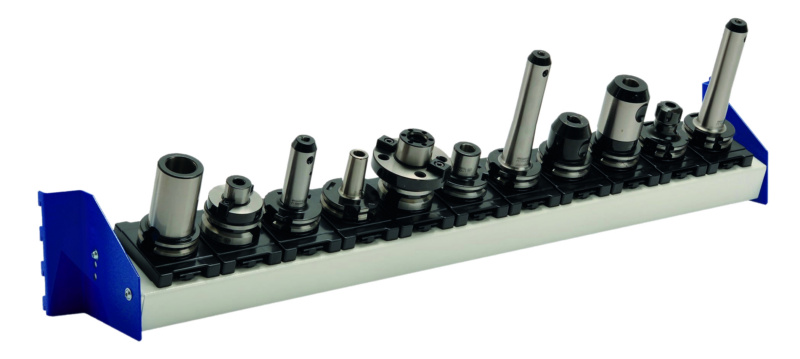

  • Tool holder shelf narrow RAL 7035/5010 for CNC trolley cat. no. 83959 101+201
