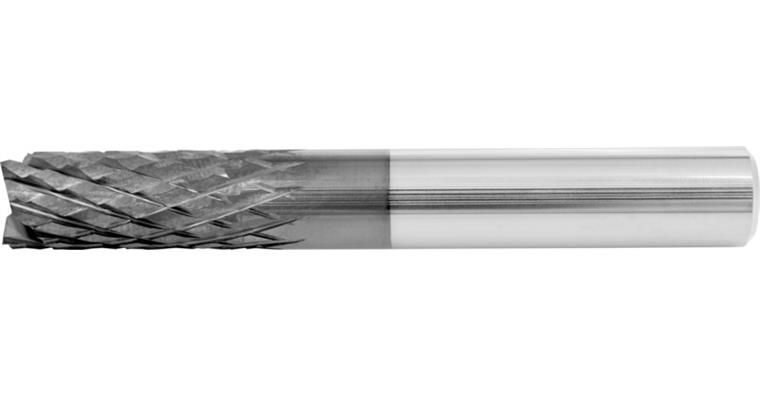

ATORN SC compression milling cutter diameter 12.0 mm W-C:20 L:83x40 d12

ATORN SC compression milling cutter diameter 12.0 mm W-C:20 L:83x40 d12

1016909112 ATORN SC compression milling cutter diameter 12.0 mm W-C:20 L:83x40 d12
Item no: 1016909 112

Online price:

Still in stock: 1

Application
With this tool, the spiral changes from left to right, which leads to the axial cutting forces being compressed at a centred point. The tools are available in three lengths to ensure compression always occurs in the centre of the workpiece. This allows delamination issues to be more effectively dealt with. HSC compression milling cutters are especially suitable for machining epoxy resin or polyester-based plastics with carbon or glass fibres and make it possible to manufacture surfaces in finishing quality (ra < 2 µm).

Execution
  • Solid carbide ultra-fine grain
  • Diamond coating
  • Straight shank in accordance with DIN 6535 HA
  • 3 spiral changes available

Advantage
  • Spiral change from left to right
  • Simultaneous drawing and pushing cut
  • Opposing flutes with chip breakers
  • Axial cutting forces run together in the middle

Notes
You can find detailed information on the usage value of this tool on our online shop.

Brand: ATORN
Cutting material: SC
Surface: Diamond coating
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 40 mm
Clearance length: 20 mm
Length: 83 mm
Shank diameter: 12 mm
fz aluminium: 0,2 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10440662

EAN no.: 4050293439199

Product Datasheet
