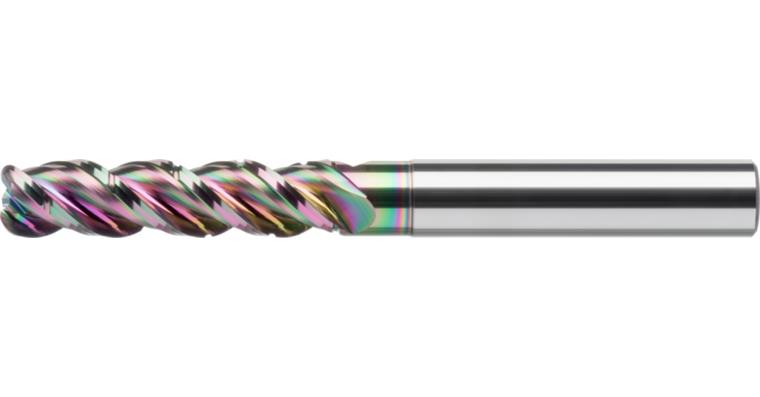

ATORN SC torus mill. cutt. w/ HA shaft diameter 8.0 x 33 x 80 mm T=3 radius 2.0

ATORN SC torus mill. cutt. w/ HA shaft diameter 8.0 x 33 x 80 mm T=3 radius 2.0

ATORN SC torus mill. cutt. w/ HA shaft diameter 8.0 x 33 x 80 mm T=3 radius 2.0
Item no: 1016895 105

Online price:

Available in 4-6 working days.

Application
HPC/TVC torus milling cutter with uneven pitch for roughing and finishing of non-ferrous metals with maximum machining performance.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • Radius tolerance = +/- 0.01 mm
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 8 mm
Cutting edge length: 33 mm
Clearance length: 41 mm
Length: 80 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
Edge radius: 2 mm
fz aluminium: 0,05 mm

ATORN-No.: 12040816

EAN no.: 4050293628647

Product Datasheet
