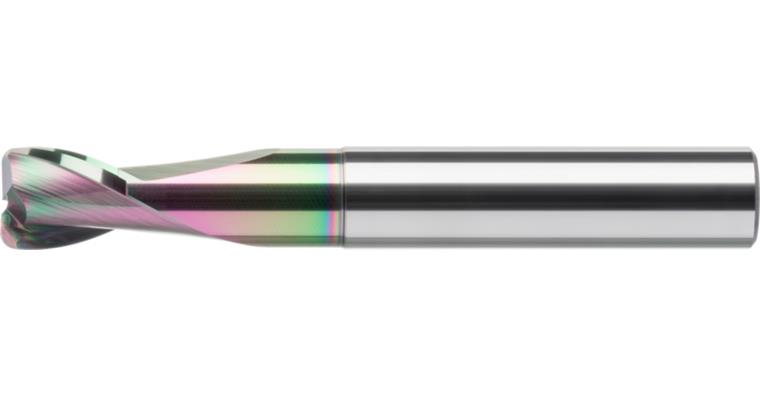

ATORN SC torus mill. cutt. w HA shaft, diameter 8.0 x 9 x 63 mm, T=2, radius 1.0

ATORN SC torus mill. cutt. w HA shaft, diameter 8.0 x 9 x 63 mm, T=2, radius 1.0

ATORN SC torus mill. cutt. w HA shaft, diameter 8.0 x 9 x 63 mm, T=2, radius 1.0
Item no: 1016893 108

Online price:

Still in stock: 2

Application
Torus milling cutter, standard version for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • Radius tolerance = +/- 0.01 mm
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 9 mm
Clearance length: 27 mm
Length: 63 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
Edge radius: 1 mm
fz aluminium: 0,11 mm

ATORN-No.: 12040787

EAN no.: 4050293628357

Product Datasheet Datasheet cutting values
