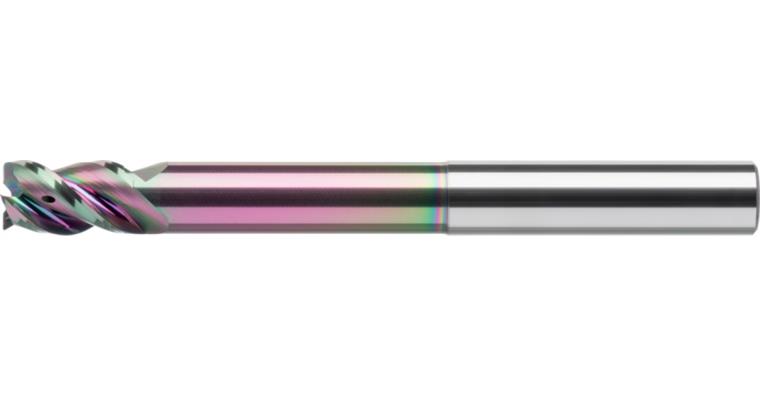

ATORN solid carbide end mill Z3 HA shaft diameter 12.0 x 19 x 120 mm with IC

ATORN solid carbide end mill Z3 HA shaft diameter 12.0 x 19 x 120 mm with IC

ATORN solid carbide end mill Z3 HA shaft diameter 12.0 x 19 x 120 mm with IC
Item no: 1016890 104

Online price:

Still in stock: 2

Application
Long HPC end mill with variable pitch for roughing and finishing non-ferrous metals with maximum results.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO-coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding
  • with internal cooling

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 19 mm
Clearance length: 73 mm
Length: 120 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11,7 mm
Shank diameter: 12 mm
fz aluminium: 0,07 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040750

EAN no.: 4050293627985

Product Datasheet Datasheet cutting values
