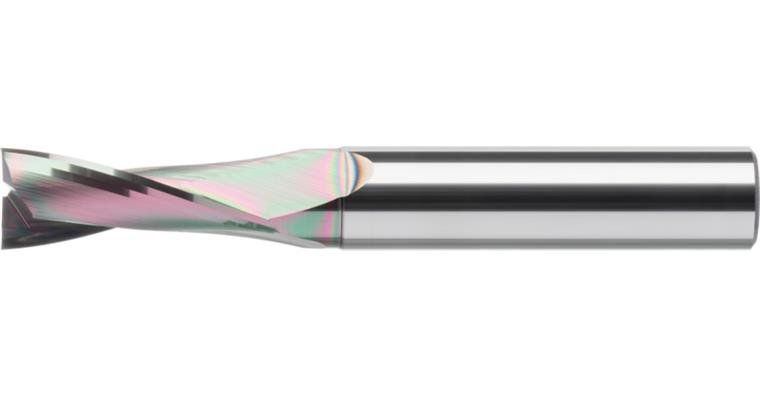

SC end mill, cutting diameter 6 mm, cutting length 16 mm, length 64 mm

SC end mill, cutting diameter 6 mm, cutting length 16 mm, length 64 mm

SC end mill, cutting diameter 6 mm, cutting length 16 mm, length 64 mm
Item no: 1016887 104

Online price:

Available for immediate delivery

Application
For dive, groove and keyway milling as well as helical and circumferential milling in all non-ferrous metals and plastics with maximum results.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • sharp-edged
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 20°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 16 mm
Clearance length: 21 mm
Length: 64 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
fz aluminium: 0,072 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040724

EAN no.: 4050293627725

Product Datasheet Datasheet cutting values
