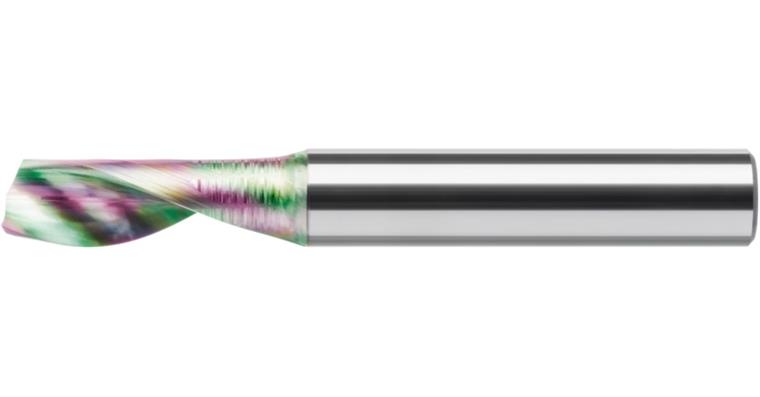

SC single-tooth milling cutter, cutting diam. 1mm, cutt leng 4mm, length 50mm

SC single-tooth milling cutter, cutting diam. 1mm, cutt leng 4mm, length 50mm

SC single-tooth milling cutter, cutting diam. 1mm, cutt leng 4mm, length 50mm
Item no: 1016886 101

Online price:

Still in stock: 2

Application
For milling, recessing and contour milling of non-ferrous metals and plastics.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • sharp-edged
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 1 PCS
Twist angle: 26°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 1 mm
Cutting edge length: 4 mm
Length: 50 mm
Shank diameter: 3 mm
fz aluminium: 0,01 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040702

EAN no.: 4050293627503

Product Datasheet Datasheet cutting values
