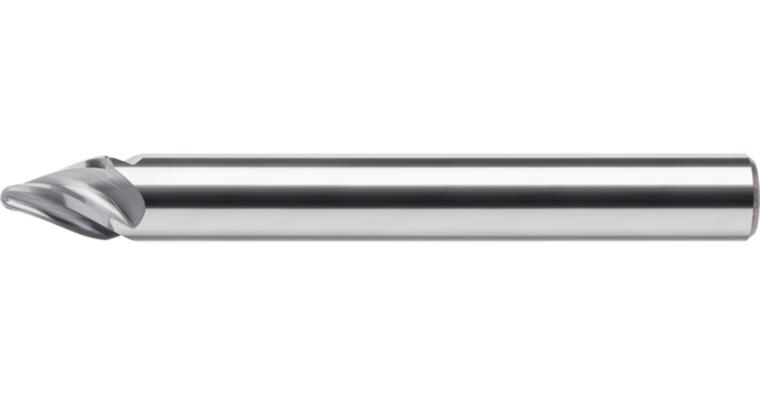

ATORN barrel cutter, length 100 mm, shaft diameter 12 mm, diameter 2–8 mm

ATORN barrel cutter, length 100 mm, shaft diameter 12 mm, diameter 2–8 mm

ATORN barrel cutter, length 100 mm, shaft diameter 12 mm, diameter 2–8 mm
Item no: 1016833 304

Online price:

Available in 6-8 working days.

Application
Barrel milling cutters revolutionise finishing on 5-axis milling machines. Due to the larger radii, you can achieve significantly higher infeeds with improved surfaces.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • Conical design
  • Forming tolerance of +/-0.01
  • Uncoated
  • Defined edge rounding
  • α/2 is the recommended angle to the surface

Advantage
  • Suitable for deep cavities and steep areas
  • Reduced machining times thanks to large line skips
  • Highly economical
  • Improved surfaces thanks to large radii


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 15°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 14 mm
Length: 100 mm
Shank diameter: 12 mm
fz steel 1000: 0,072 mm

ATORN-No.: 12040852

EAN no.: 4050293635607
