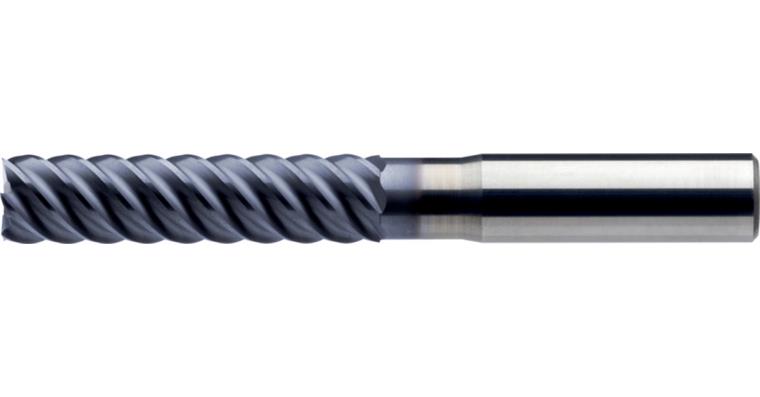

ATORN SC multi-tooth mill, long diameter 16.0 x 57 x 85 x 125 mm, T=8 RT52

ATORN SC multi-tooth mill, long diameter 16.0 x 57 x 85 x 125 mm, T=8 RT52

ATORN SC multi-tooth mill, long diameter 16.0 x 57 x 85 x 125 mm, T=8 RT52
Item no: 1016825 108

Online price:

Still in stock: 3

Application
Multi-tooth mill for circumferential machining, fine finishing and semi-roughing up to 52 HRC.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • Edge protection chamfer
  • HA shank pursuant to DIN 6535
  • Cutting edge finish
  • With clearance
  • Type N
  • Chip angle 3°
  • RockTec 52-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 8 PCS
Twist angle: 50°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 16 mm
Cutting edge length: 57 mm
Clearance length: 85 mm
Length: 125 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 15 mm
Shank diameter: 16 mm
fz steel 1300: 0,1 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860297

EAN no.: 4050293196368

Product Datasheet
