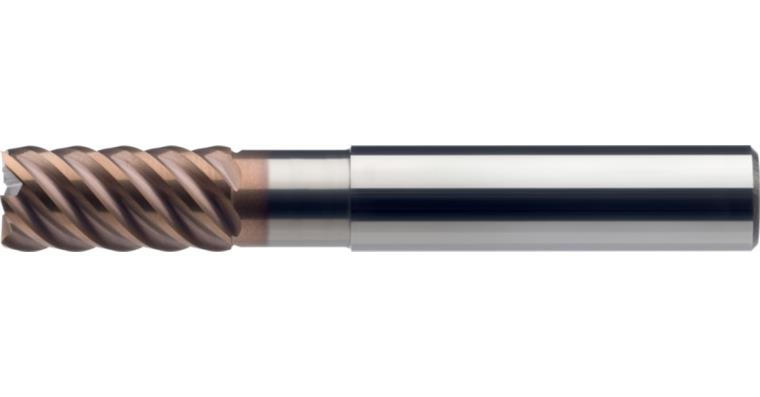

ATORN solid carbide multi-tooth mill diameter 3.0 x 8 x 20 x 50 mm T=6 RT65

ATORN solid carbide multi-tooth mill diameter 3.0 x 8 x 20 x 50 mm T=6 RT65

ATORN solid carbide multi-tooth mill diameter 3.0 x 8 x 20 x 50 mm T=6 RT65
Item no: 1016824 301

Online price:

Available for immediate delivery

Application
Multi-tooth mills for circumferential, ultra-fine finish cutting and semi-rough cutting in materials up to 65 HRC.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • Edge protection chamfer
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type H
  • Chip angle -26°
  • RockTec 65-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 6 PCS
Twist angle: 50°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 3 mm
Cutting edge length: 8 mm
Clearance length: 20 mm
Length: 50 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 2,8 mm
Shank diameter: 6 mm
fz hard 52 HRC: 0,02 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860681

EAN no.: 4050293199512

Product Datasheet
