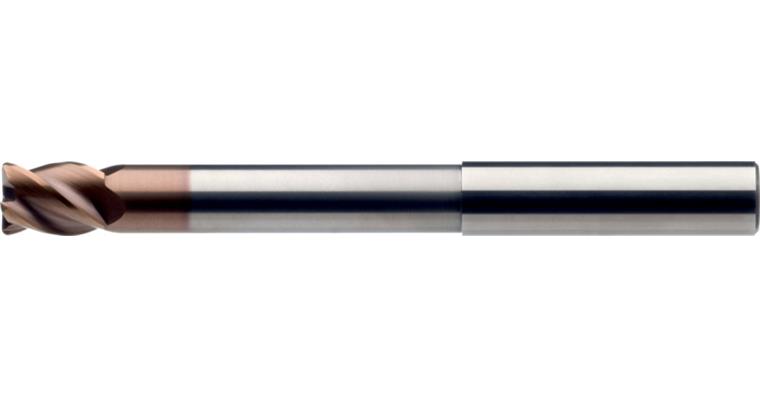

ATORN SC torus mill. cutter, long diameter 10.0 x 14 x 60 x 100 mm r1.0 T=4 RT65

ATORN SC torus mill. cutter, long diameter 10.0 x 14 x 60 x 100 mm r1.0 T=4 RT65

ATORN SC torus mill. cutter, long diameter 10.0 x 14 x 60 x 100 mm r1.0 T=4 RT65
Item no: 1016818 311

Online price:

Will be ordered for you

Application
Torus milling cutter, long, with short blade for processing materials up to 65 HRC, e.g. for die and mould making.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • With clearance
  • Type H
  • Chip angle -5° -7°
  • RockTec 65-coated
  • Radius tolerance = 0/-0.010 mm

Advantage
  • Best chip removal and temperature resistance
  • RockTec 65 coating for maximum service life


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 10 mm
Cutting edge length: 14 mm
Clearance length: 60 mm
Length: 100 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
Edge radius: 1 mm
fz hard 52 HRC: 0,07 mm

ATORN-No.: 11860659

EAN no.: 4050293199291

Product Datasheet
