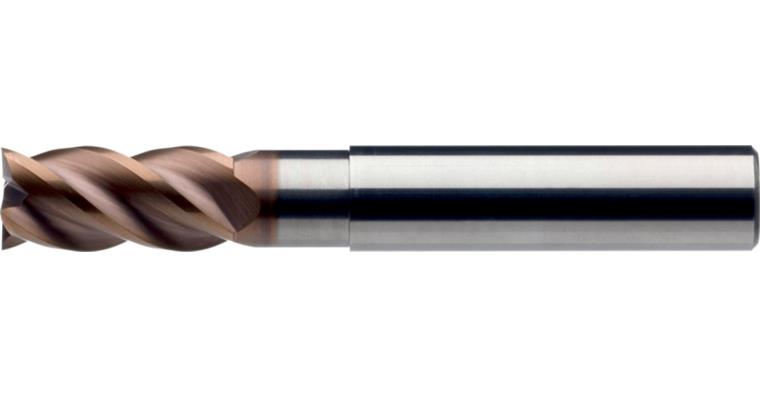

ATORN SC end mill, standard, diameter 16.0 x 32 x 46 x 90 mm, T=4 RT65

ATORN SC end mill, standard, diameter 16.0 x 32 x 46 x 90 mm, T=4 RT65

ATORN SC end mill, standard, diameter 16.0 x 32 x 46 x 90 mm, T=4 RT65
Item no: 1016810 308

Online price:

Available for immediate delivery

Application
End mill in a standard design for machining materials up to 65 HRC, e.g. dip cutting and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type H
  • Chip angle -6°
  • RockTec 65-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 16 mm
Cutting edge length: 32 mm
Clearance length: 46 mm
Length: 90 mm
Clearance diameter: 15 mm
Shank diameter: 16 mm
fz hard 52 HRC: 0,11 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860587

EAN no.: 4050293198577

Product Datasheet
