ATORN RockTec PRO mini end mill, long neck 0.8x1.2x5x45 mm T=2 HA

ATORN RockTec PRO mini end mill, long neck 0.8x1.2x5x45 mm T=2 HA

ATORN RockTec PRO mini end mill, long neck 0.8x1.2x5x45 mm T=2 HA
Item no: 1016802 537

Online price:

Still in stock: 3

Application
Mini end mill with a long neck for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 0,8 mm
Cutting edge length: 1,2 mm
Clearance length: 5 mm
Length: 45 mm
Clearance diameter: 0,78 mm
Shank diameter: 4 mm
fz hard 65 HRC: 0,009 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264702

EAN no.: 4066107032531

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN RockTec PRO mini end mill, long neck 0.2x0.3x2x45 mm T=2 HA
    58,96 €
  • ATORN RockTec PRO mini end mill, long neck 0.4x0.6x1x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 0.4x0.6x5x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 0.5x0.7x6x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 0.5x0.7x8x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 0.8x1.2x8x45 mm T=2 HA
  •
    ATORN RockTec PRO mini end mill, long neck 1.2x1.8x2x45 mm T=2 HA
  •
    ATORN gripper jaws internal hardened 1.5 mmx60° M14 spacing 30 mm
  •
    ATORN smooth steel wire pipe brush 38 mm, width 1/2 inch, length 160 mm
  •

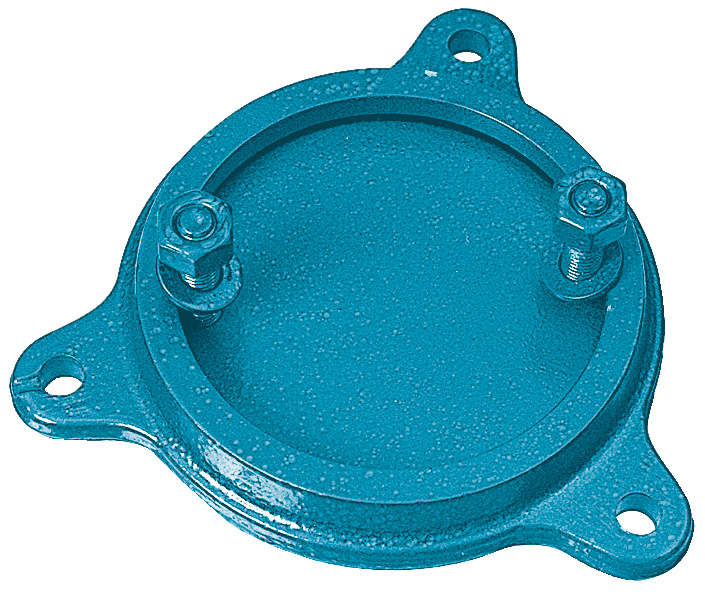

    ATORN rotary base for 150 mm bench vice, blue
  •
