ATORN SC mini end mill, long, diameter 1.2 x 1.8 x 6 x 50 mm T=2 RT52

ATORN SC mini end mill, long, diameter 1.2 x 1.8 x 6 x 50 mm T=2 RT52

ATORN SC mini end mill, long, diameter 1.2 x 1.8 x 6 x 50 mm T=2 RT52
Item no: 1016801 131

Online price:

Will be ordered for you

Application
Mini end mill with a long neck for machining materials up to 52 HRC, e.g. in dip working and mould forming.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank pursuant to DIN 6535
  • With clearance
  • Type N
  • Chip angle 3°
  • RockTec 52-coated
  • Cutter tolerance Ø 0.1-0.7 mm = 0/-0.012 mm
  • Cutter tolerance Ø 0.7-3.0 mm = 0/-0.020 mm

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 1,2 mm
Cutting edge length: 1,8 mm
Clearance length: 6 mm
Length: 50 mm
Clearance diameter: 1,15 mm
Shank diameter: 4 mm
fz steel 1300: 0,006 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860040

EAN no.: 4050293193794

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Fibre disc ceramic stearate for ALU XF733, dia. 125 mm, grain 36
    2,73 €
  • Lamella flap disc, tapered, power line A-COOL SG INOX+ALU dia. 115 mm grain 40
  •
    Lamella flap disc, tapered, power line A-COOL SG INOX+ALU dia. 125 mm grain 40
  •
    Lamella flap disc, tapered, power line A-COOL SG INOX+ALU dia. 125 mm grain 60
  •

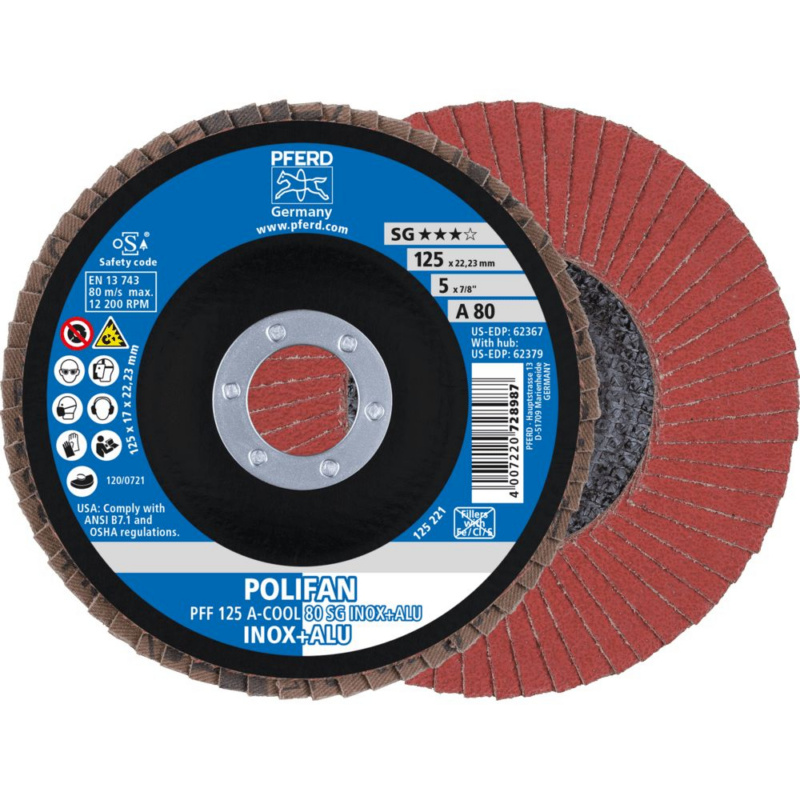

    Lamella flap disc, tapered, power line A-COOL SG INOX+ALU dia. 125 mm grain 80
  •
