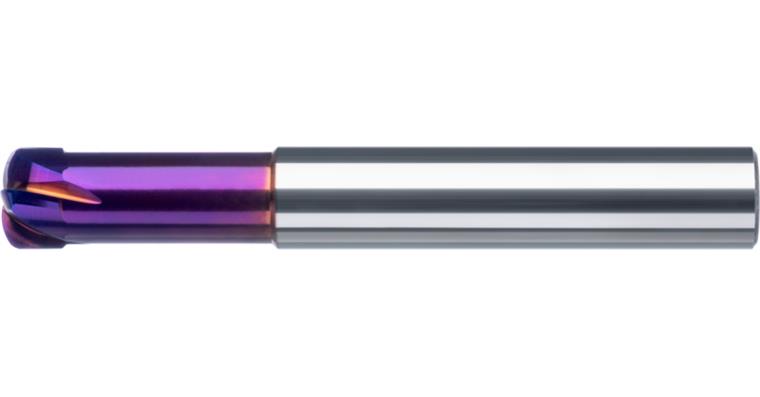

ATORN SC high-feed milling cutter 12x6.8x30x83 mm r=1.9 T=4 HA RockTec PRO

ATORN SC high-feed milling cutter 12x6.8x30x83 mm r=1.9 T=4 HA RockTec PRO

ATORN SC high-feed milling cutter 12x6.8x30x83 mm r=1.9 T=4 HA RockTec PRO
Item no: 1016797 112

Online price:

Available in 6-8 working days.

Application
High-feed milling cutter (HSC) with a short cutting edge for processing materials up to 65 HRC. Areas of application are in die and mould making, and in general mechanical engineering.

Execution
  • Standard version
  • Cutting material, Ultra Micro fine grain
  • Centre cutting
  • HA shaft in line with DIN 6535
  • Clearance
  • Type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.01 mm

Advantage
  • High material removal rate, high surface quality
  • Good dimensional and geometric accuracy
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 10° (right)
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 6,8 mm
Clearance length: 30 mm
Length: 83 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
Edge radius: 1,9 mm
fz hard 65 HRC: 0,17 mm

ATORN-No.: 11264484

EAN no.: 4050293747195

Product Datasheet
