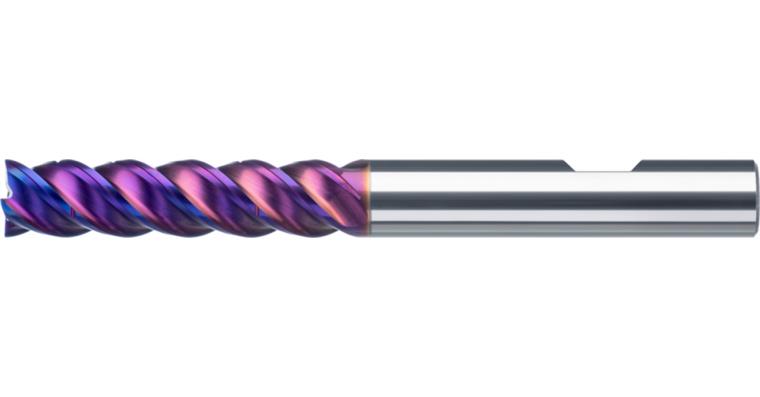

ATORN SC TVC end mill 6x25x70 mm T4 HB shank 4xD RT Pro

Versions

Item no: 1016796 206

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting lengths of 3xD and 4xD, reinforced cores and specially developed chip breaker geometries allow for deep operating depths with maximum process reliability.

Execution

Cutting material, Ultra Micro fine grain
Cutting edge finish
Straight shank in line with DIN 6535 HB
Type H
Centre cutting and edge protection chamfer
Special chip breakers for short chips
Uneven twist angle
With RockTec PRO coating

Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 6 mm
Cutting edge length: 25 mm
Length: 70 mm
Shank diameter: 6 mm
fz hard 65 HRC: 0,05 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264471

EAN no.: 4066107012809

Product Datasheet Datasheet cutting values

Versions
