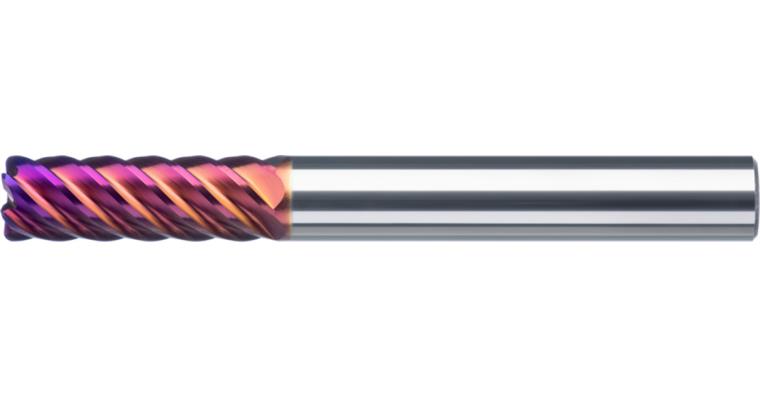

ATORN SC multi-tooth mill ER long TiAlSiN 4x12x65 mm edge radius 0.1 mm

ATORN SC multi-tooth mill ER long TiAlSiN 4x12x65 mm edge radius 0.1 mm

ATORN SC multi-tooth mill ER long TiAlSiN 4x12x65 mm edge radius 0.1 mm
Item no: 1016789 112

Online price:

Available in 6-8 working days.

Application
Torus multi-tooth mills in long design for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 6 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Length: 65 mm
Shank diameter: 6 mm
Edge radius: 0,1 mm
fz hard 65 HRC: 0,035 mm

ATORN-No.: 11264032

EAN no.: 4050293652611

Product Datasheet Datasheet cutting values
