ATORN SC multi-tooth mill ER TiAlSiN 5x13x57 mm edge radius 0.5 mm

ATORN SC multi-tooth mill ER TiAlSiN 5x13x57 mm edge radius 0.5 mm

ATORN SC multi-tooth mill ER TiAlSiN 5x13x57 mm edge radius 0.5 mm
Item no: 1016788 116

Online price:

Still in stock: 4

Application
Torus multi-tooth mills in standard design for machining materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • with clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 6 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 5 mm
Cutting edge length: 13 mm
Length: 57 mm
Shank diameter: 6 mm
Edge radius: 0,5 mm
fz hard 65 HRC: 0,04 mm

ATORN-No.: 11264011

EAN no.: 4050293652406

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE-PM TICN HB C 371 50° M10 ISO2 S 2.5xD CNC
  •
    Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E-TiN M12
  •
    ATORN screw tap HSSE V3 vaporised E 40° M16 2.0 ISO2 2.5xD CNC UNI
  •
    Blind hole screw tap M 2-Enorm-LS DIN 376 39° shape C 2.5xD HSS-E extra-long M8
  •
    ATORN forward and reverse deburrer 90 degrees SC-TiAlN 2.4 mm short w. HA shaft
  •
    ATORN forward and reverse deburring tool 90° SC-TiAlN 4.9 mm short with HA shank
  •
    ATORN SC 90° forward + reverse deburr. tool TiAlN, 15.8 mm with HA shaft
    202,40 €
  • ATORN SC mini torus mill cttr TiAlSiN 1.5x1.5x50 mm clearance 1.44x4 mm R 0.1 mm
  •
    ATORN SC torus mill cttr short TiAlSiN 8x9x63 mm clearance 7.6x26 mm R 0.5 mm
  •
    ATORN solid carbide torus milling cutter diameter 12.0 x 60 mm radius 0.5
  •

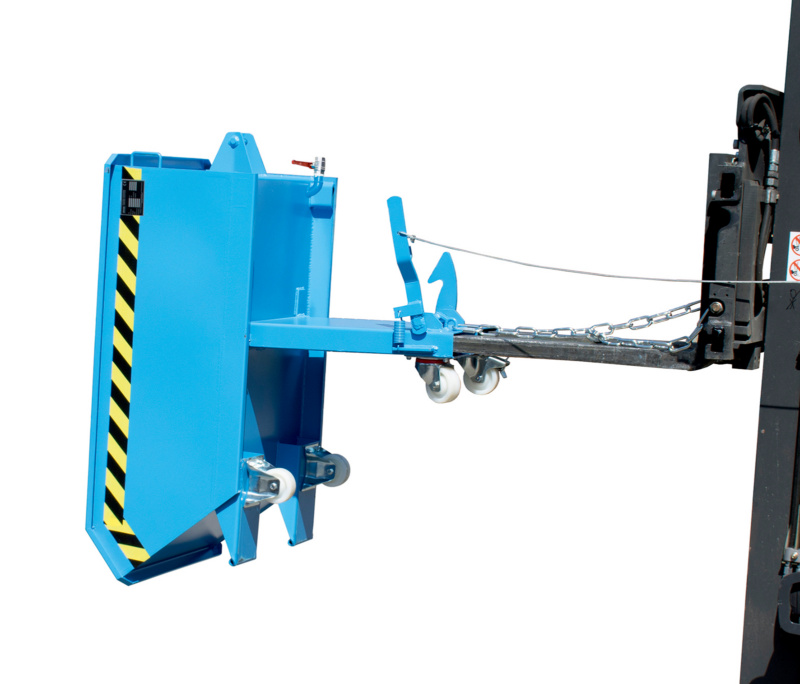

    Swarf dumper body capacity 250 l LxWxH 1115x590x740 mm RAL 5012 load cap. 300kg
  •
