ATORN SC torus milling cutter TiAlSiN 6x7x57 mm clearance 5.7x20 mm R 1 mm

ATORN SC torus milling cutter TiAlSiN 6x7x57 mm clearance 5.7x20 mm R 1 mm

ATORN SC torus milling cutter TiAlSiN 6x7x57 mm clearance 5.7x20 mm R 1 mm
Item no: 1016785 130

Online price:

Available for immediate delivery

Application
Torus milling cutter for processing materials up to 65 HRC, e.g. for die and mould making.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 7 mm
Clearance length: 20 mm
Length: 57 mm
Clearance diameter: 5,7 mm
Shank diameter: 6 mm
Edge radius: 1 mm
fz hard 65 HRC: 0,047 mm

ATORN-No.: 11264260

EAN no.: 4050293654899

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 2181 no. 1 taper tap HSS MF 3x0.35
    31,49 €
  • ATORN solid carbide torus milling cutter, UHPC 8.0 x 58 mm, R0, 5, T4, HB shaft
    64,70 €
  • ATORN RockTec PRO mini end mill, long neck 0.5x0.7x10x50 mm T=2 HA
  •
    LIZZARD Spannzange ER 20 HP Ø 12,5 metallisch abgedichtet Rundlauf 0,005 mm
    66,24 €
  • ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 4 mm A=80 mm
  •
    ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 5 mm A=80 mm
    251,68 €
  • Square longitudinal mount, shank dia. 50 mm, left, shape C4, DIN 69880, part 4
    239,94 €
  • Key file set, 6 pieces, DIN 7283 A-F, in bag, length 100 mm, cut 2
    22,75 €

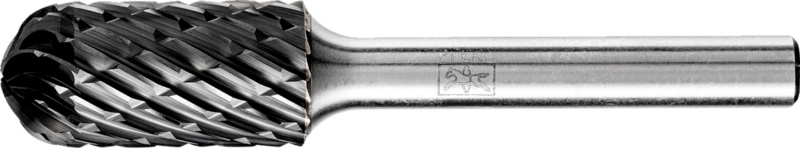

  • HM-Frässtift WRC 12x25 / Schaft-Ø6mm ALLROUND HICOAT
  •

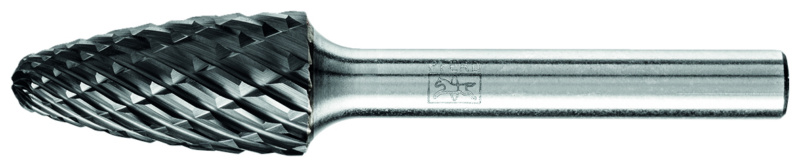

    HM-Frässtift RBF 12x25 / Schaft-Ø6mm ALLROUND HICOAT
  •
